PUR/PIR Insulated Roof Panels
Types

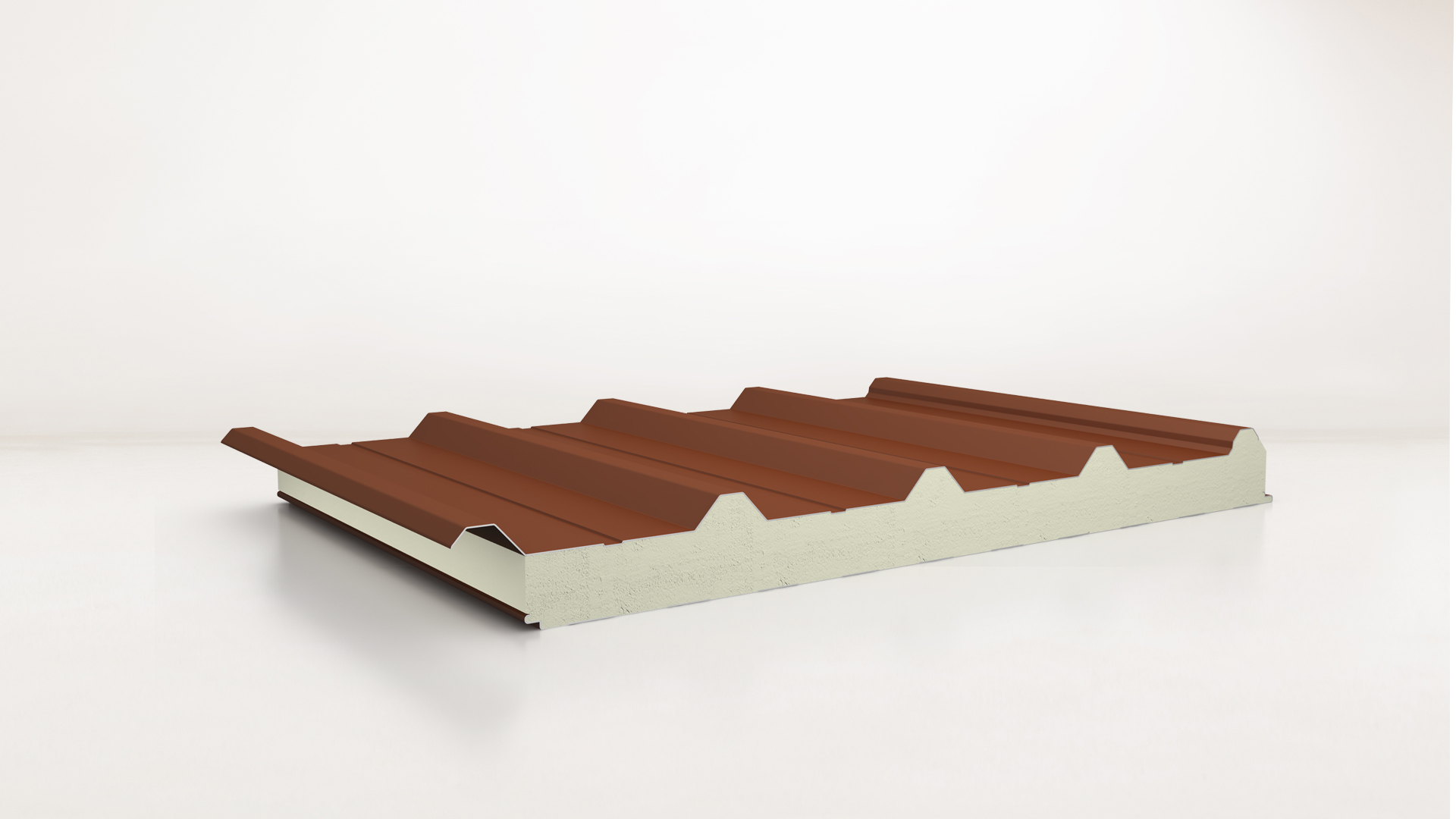

- 3-5 Ribbed Outer Screw Roof Panel PUR/PIR Insulated

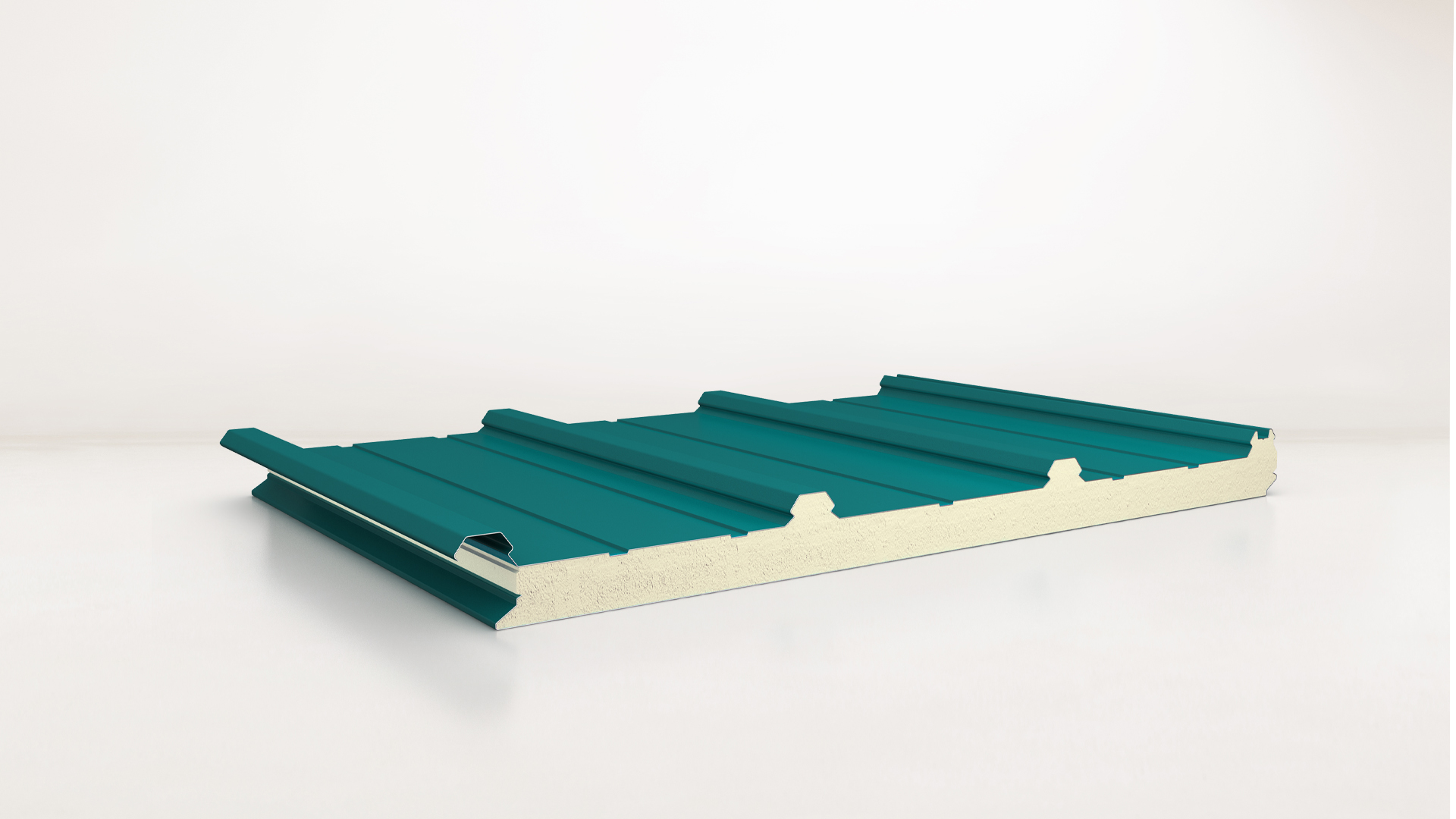

- 3-4 Ribs Hidden Screw Roof Panel PUR/PIR Insulated

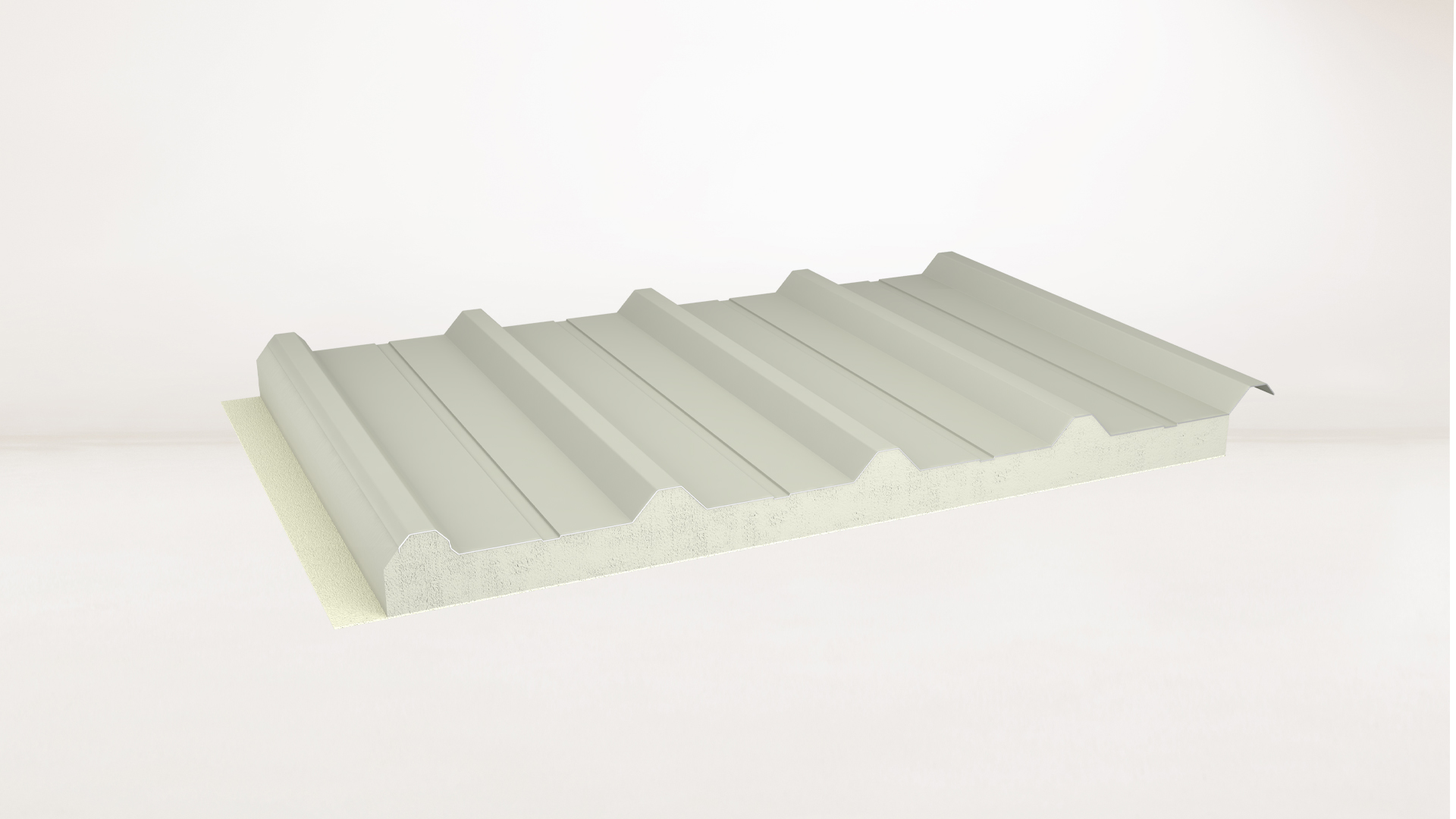

- Pet/Ctp Roof Panel PUR-PIR Insulated

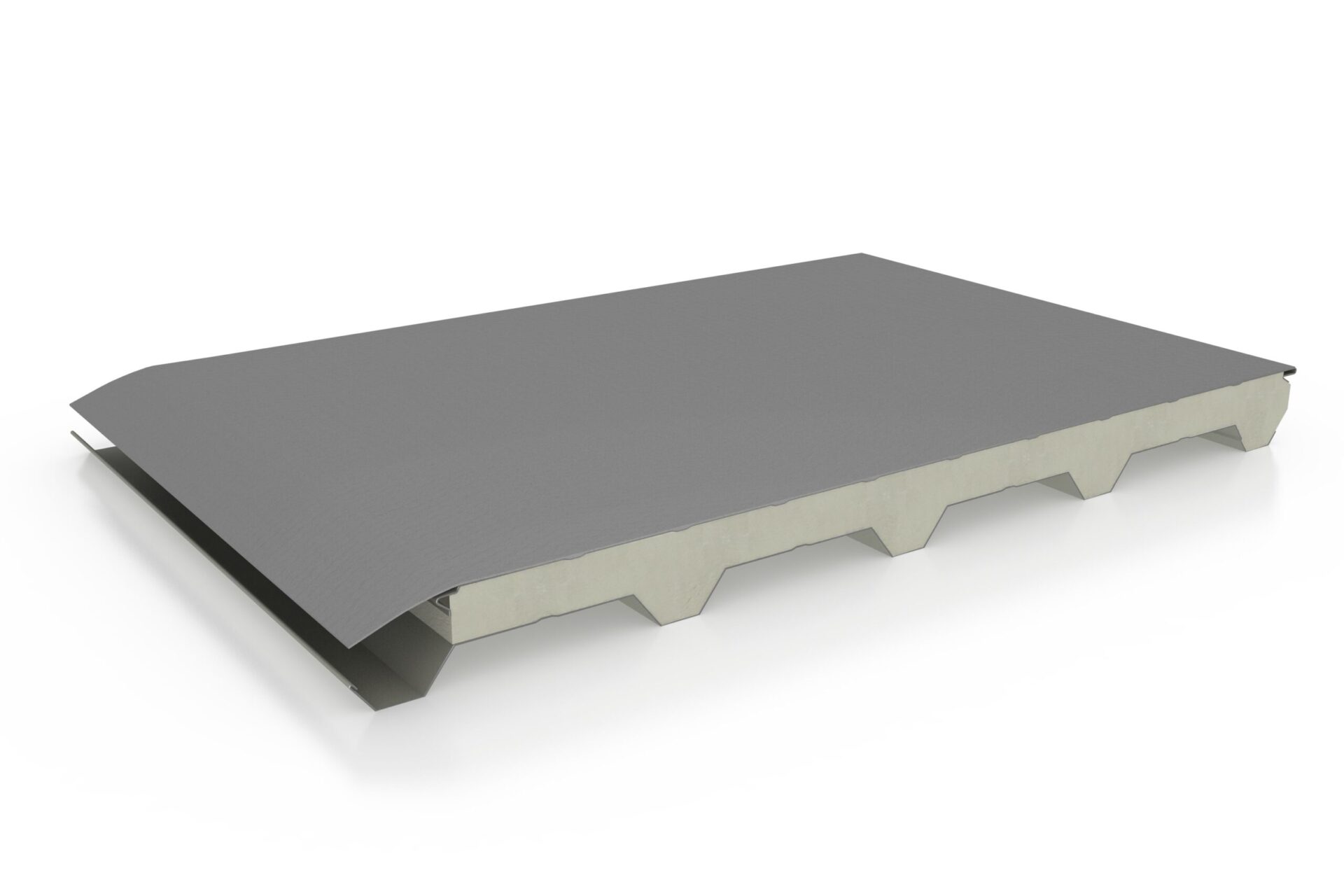

- Sheet Metal Membrane Roof Panel PUR-PIR Insulated
- Membrane Roof Panel PUR-PIR Insulated
Technical Specification
Core Thickness
20-30-40-50-60-70-80-100-120mm
Insulation Density
PUR: 40 (±2) kg/m3
PIR: 42 (±2) kg/m3
Steel Thickness/Internal Thickness Surface/BGS
0,35-0,40-0,50-0,60-0,70-0,80-1,20-1,50mm
Steel Thickness/ External Thickness/BGS
0,45-0,50-0,60-0,70-0,80mm
1,2 – 1,5 mm TPO or PVC membrane
Thermal Conductivity
λ = 0,038 – 0,022 w/mk
Reaction To Fire/PUR
Bs3d0 en 13501-1, bs2d0 en 13501-1, cs2d0 en 13501-1, cs3d0 en 13501
Reaction To Fire/PIR
Bs1d0 en 13501-1, fm, bs2d0 en 13501-1
Mineral Wool Insulated Roof Panels
Types

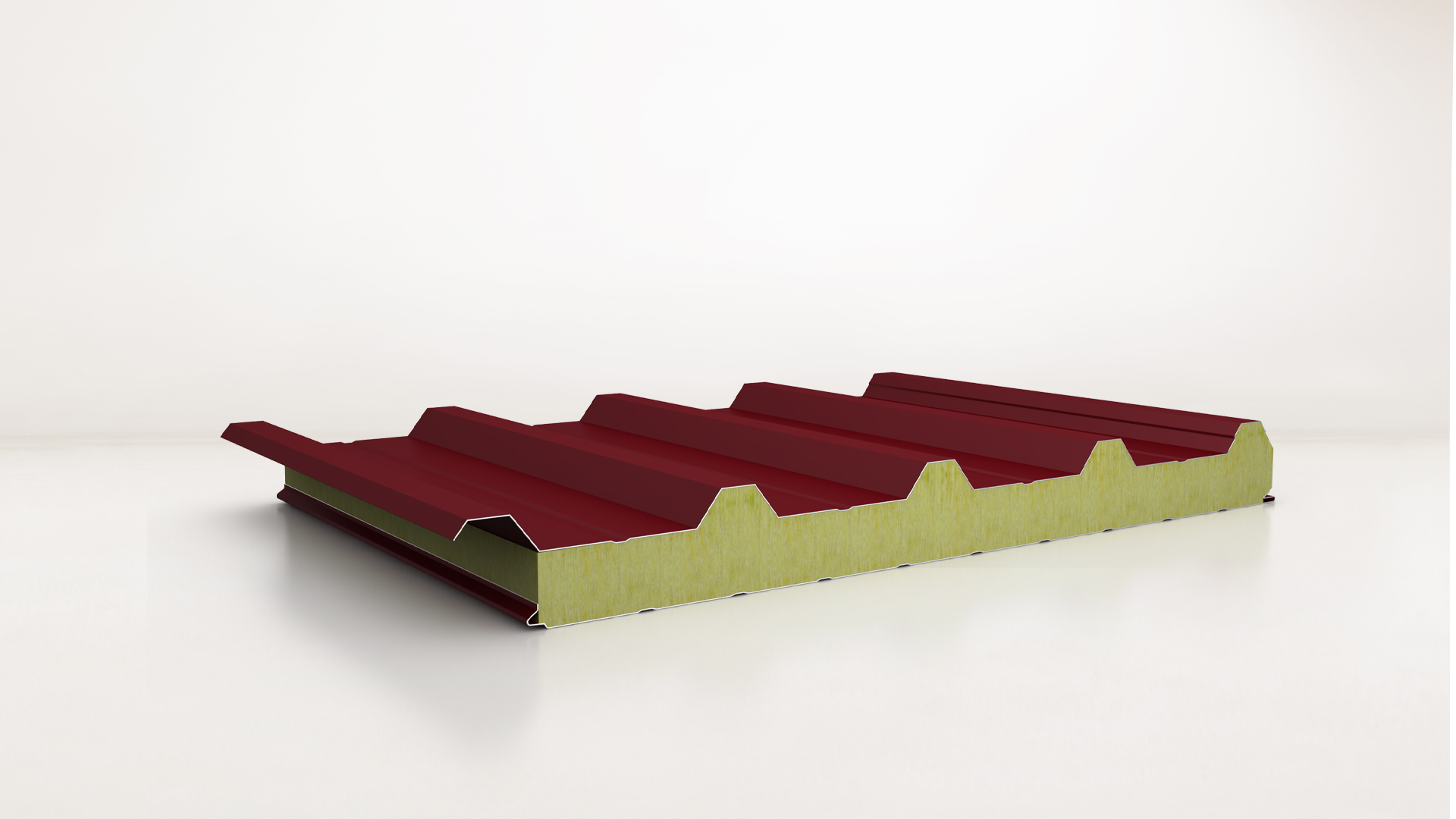

- 5 Ribs Outer Screw Roof Panel /Rockwool /Glass Wool Insulated

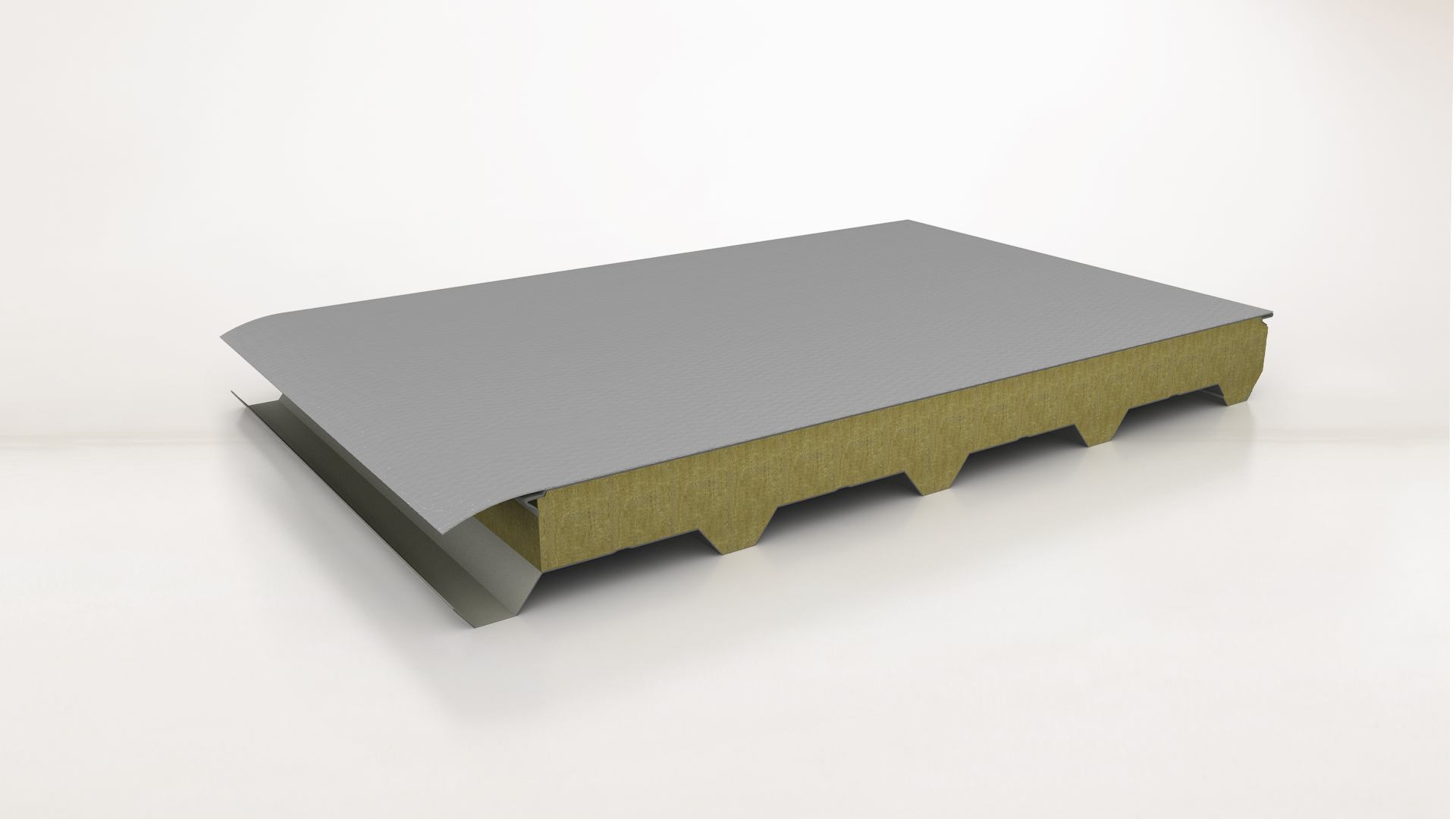

- Sheet Metal Membrane Roof Panel Rockwool Insulated
- Membrane Roof Panel Rockwool Insulated
Technical Specification
Core Thickness
50-60-75-80-100-120-150 mm
Rockwool: 90-100-110-120-130 kg/m3
Glasswool: 52 kg/m3
0,40-0,50-0,60-0,70-0,80mm
Steel Thickness/ External Thickness/BGS
0,50-0,60-0,70-80 mm
Thermal Conductivity
Rockwool λ = 0,038 W/mK
Glasswool λ = 0,032W/mK
Fire Class
Rockwool: A2 – s1, d0 tsen 13501-1
EPS Insulated Roof Panels
Types

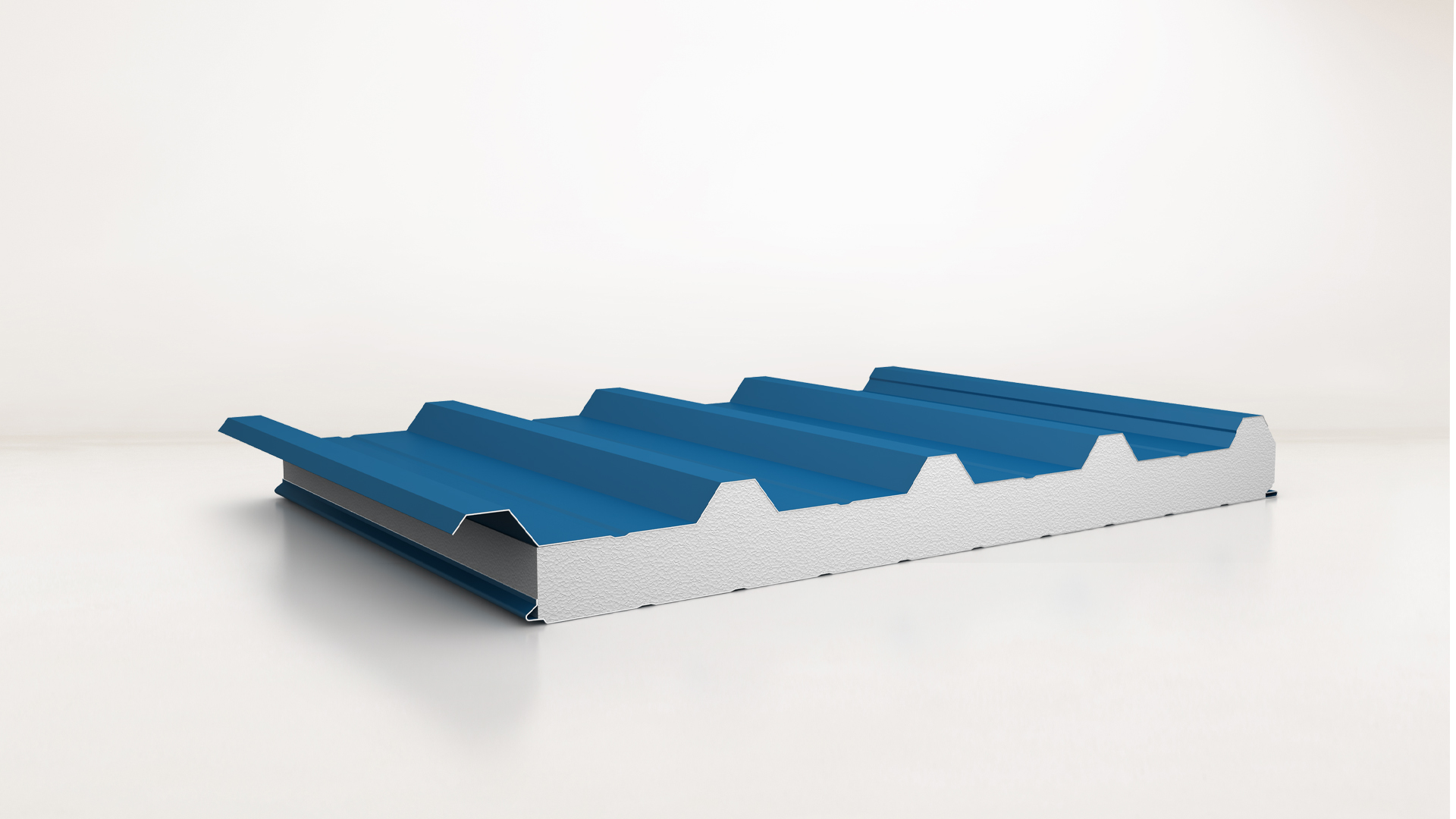

- 5 Ribs Outer Screw Roof Panel/ EPS Insulated

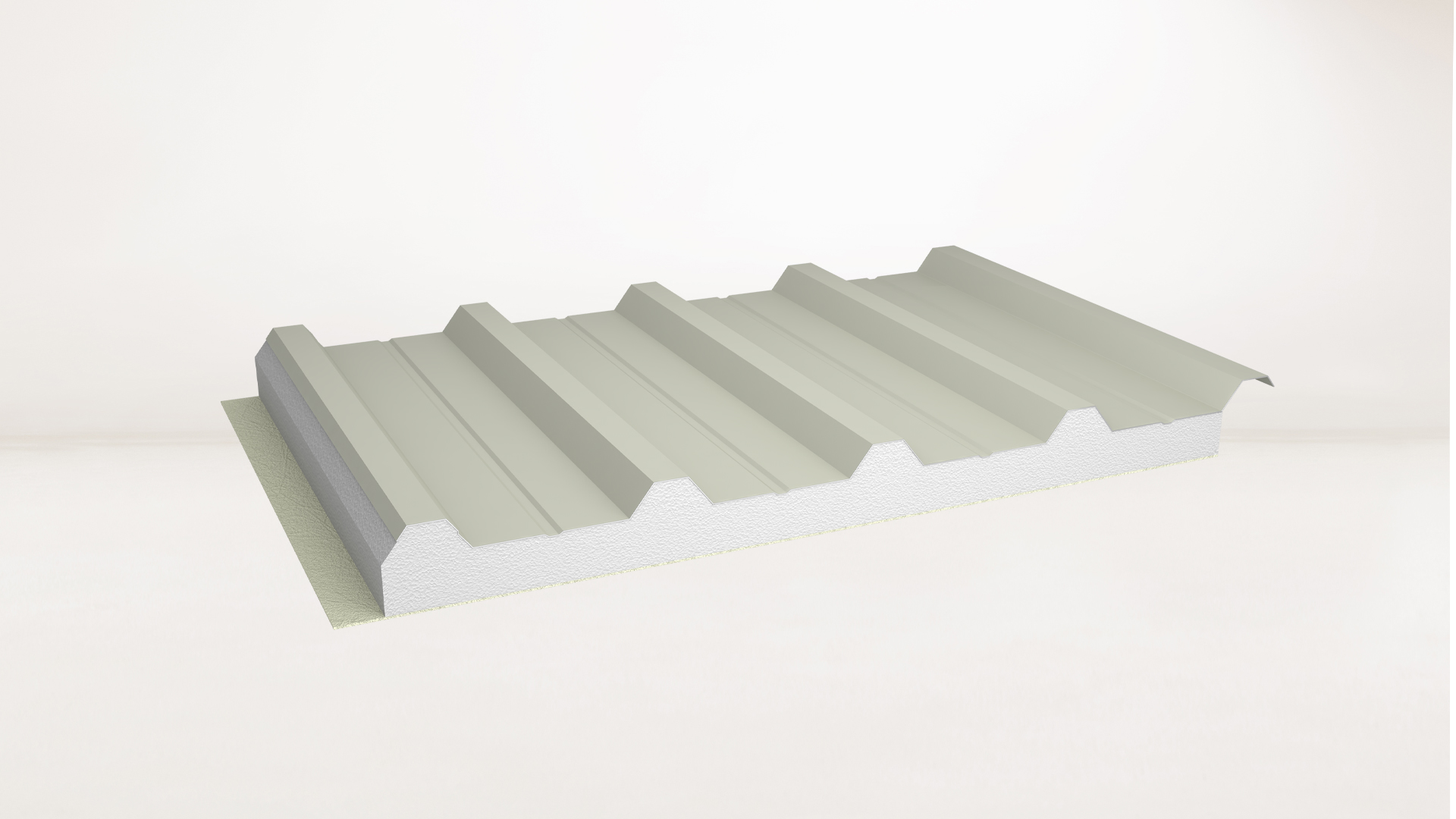

- Pet/Ctp Roof Panel EPS Insulated
Technical Specification
Core Thickness
40-50-60-70-75-80-100mm
13-30 kg/m3
Steel Thickness/Internal Thickness Surface/BGS
0,35-0,40-0,50-0,60-0,70-0,80mm
Steel Thickness/ External Thickness/BGS
0,45-0,50-0,60-0,70-0,80mm
Thermal Conductivity
λ = 0,038 w/mk
