Insulated Flexible Air Ducts

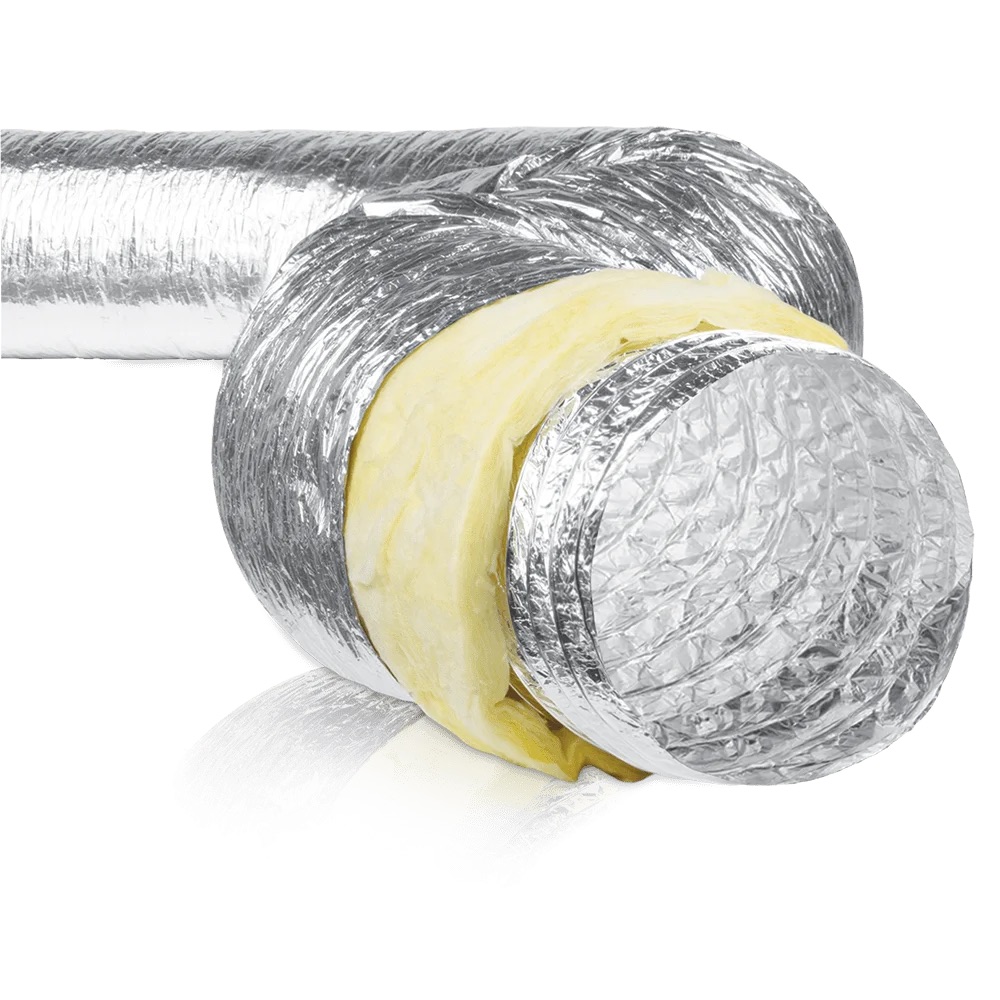

Aluminium Flexible Air Ducts
Inner Duct Construction
3 ply Aluminium + 2 ply Polyester
Nominal Thickness of Inner Duct
70 micron
Jacket Construction
1 ply Aluminium + 2 ply Polyester
Nominal Thickness of Jacket
45 micron
Insulation-Thickness-Density
Glasswool 25 mm – 16 kg/m³
Diameter Range(Ø)
2 – 30 inches / 52 mm – 800 mm
Standard Lenght
32 ft / 10 m

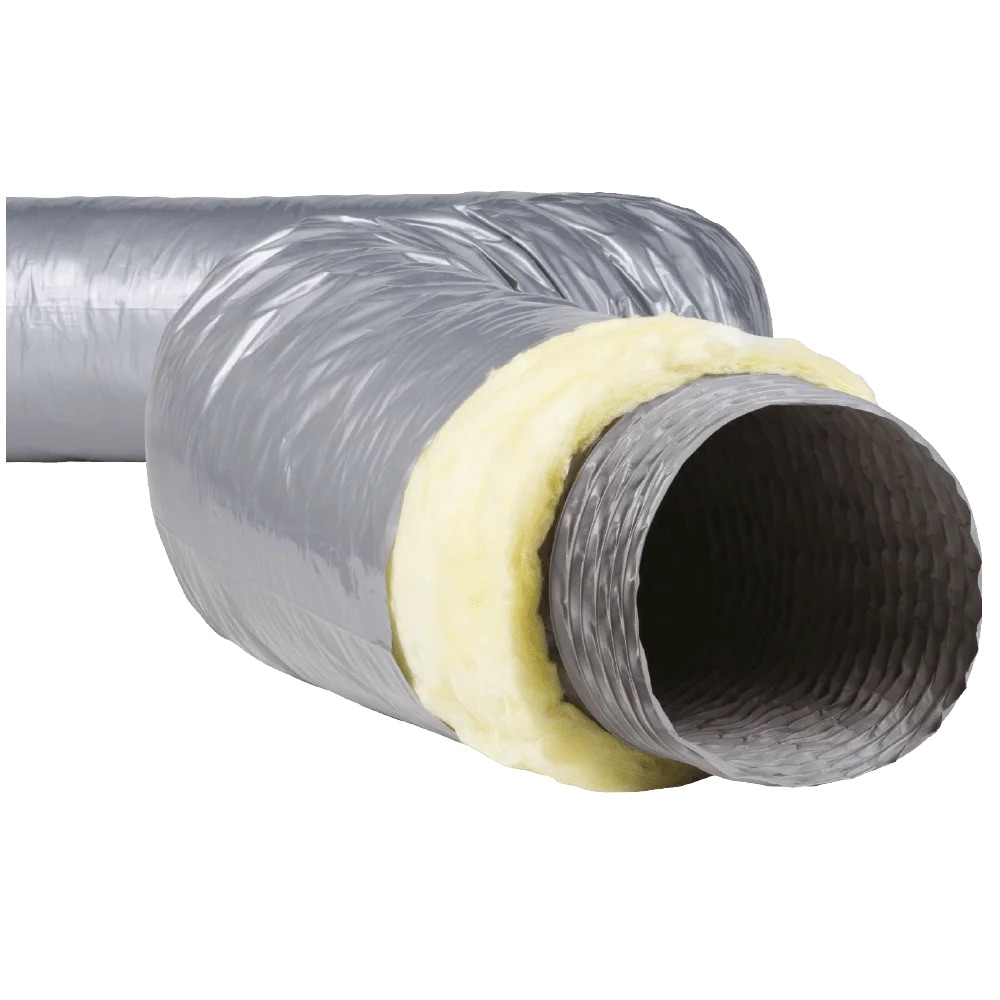

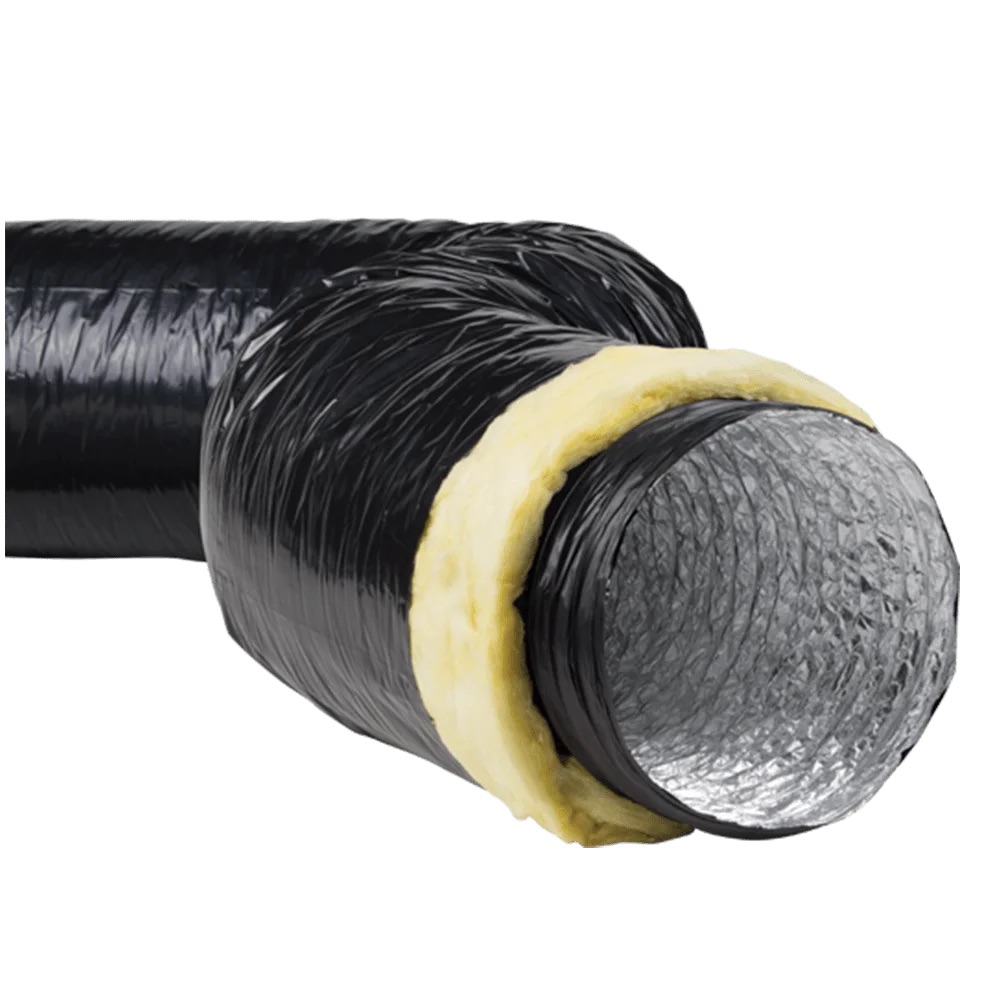

Aluminium & PVC Combined Flexible Air Ducts
Inner Duct Construction
3 ply Aluminium + 2 ply Polyester + 1 ply PVC
Nominal Thickness of Inner Duct
150 micron
Jacket Construction
1 ply PE
Nominal Thickness of Jacket
100 micron
Insulation-Thickness-Density
Glasswool 25 mm – 16 kg/m³
Diameter Range(Ø)
2 – 30 inches / 52 mm – 800 mm
Standard Lenght
32 ft / 10 m

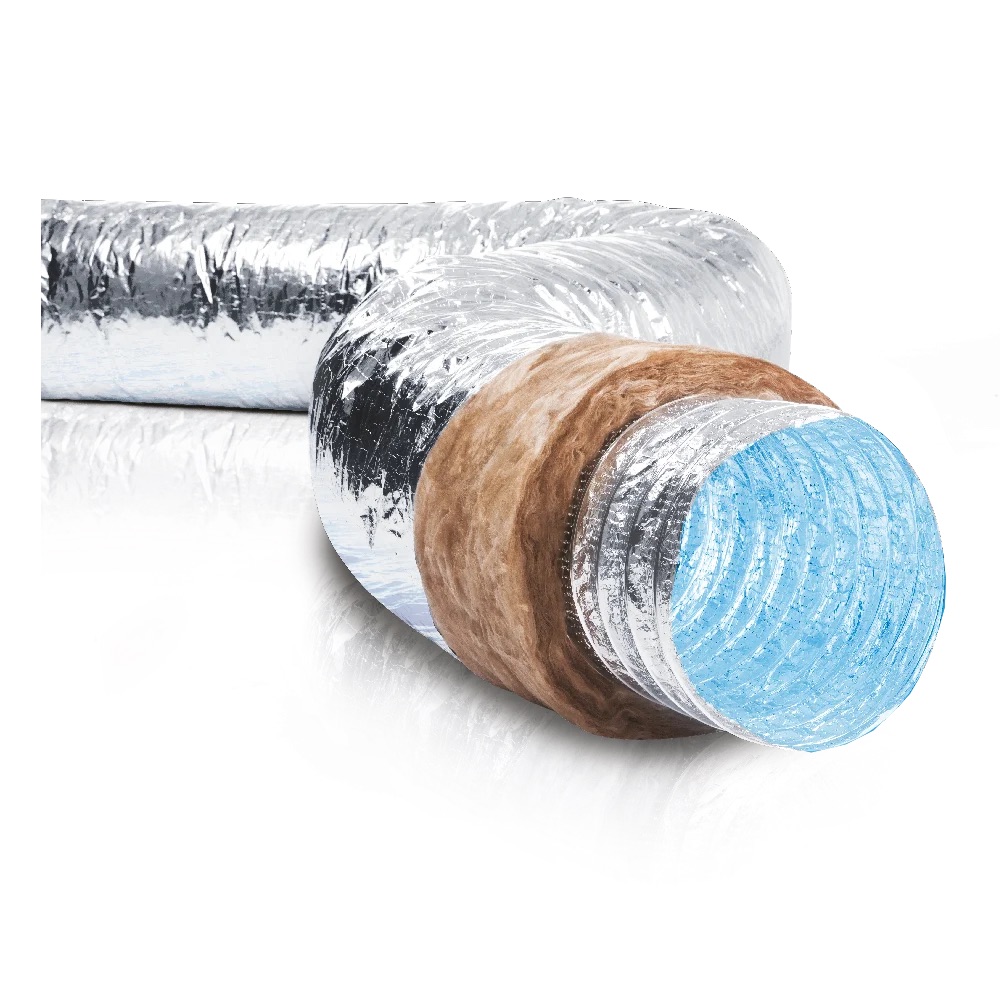

Anti-Microbial Flexible Air Ducts
Inner Duct Construction
3 ply aluminium + 1 ply polyester (Perforated) hYGİENE
Nominal Thickness of Inner Duct
70 micron + Hygiene coating
Jacket Construction
1 ply aluminium + 2 ply polyester
Nominal Thickness of Jacket
45 micron
Insulation-Thickness-Density
Glasswool 25 mm – 16 kg/m³
Diameter Range(Ø)
4 – 30 inches / 102 mm – 800 mm
Standard Lenght
32 ft / 10 m

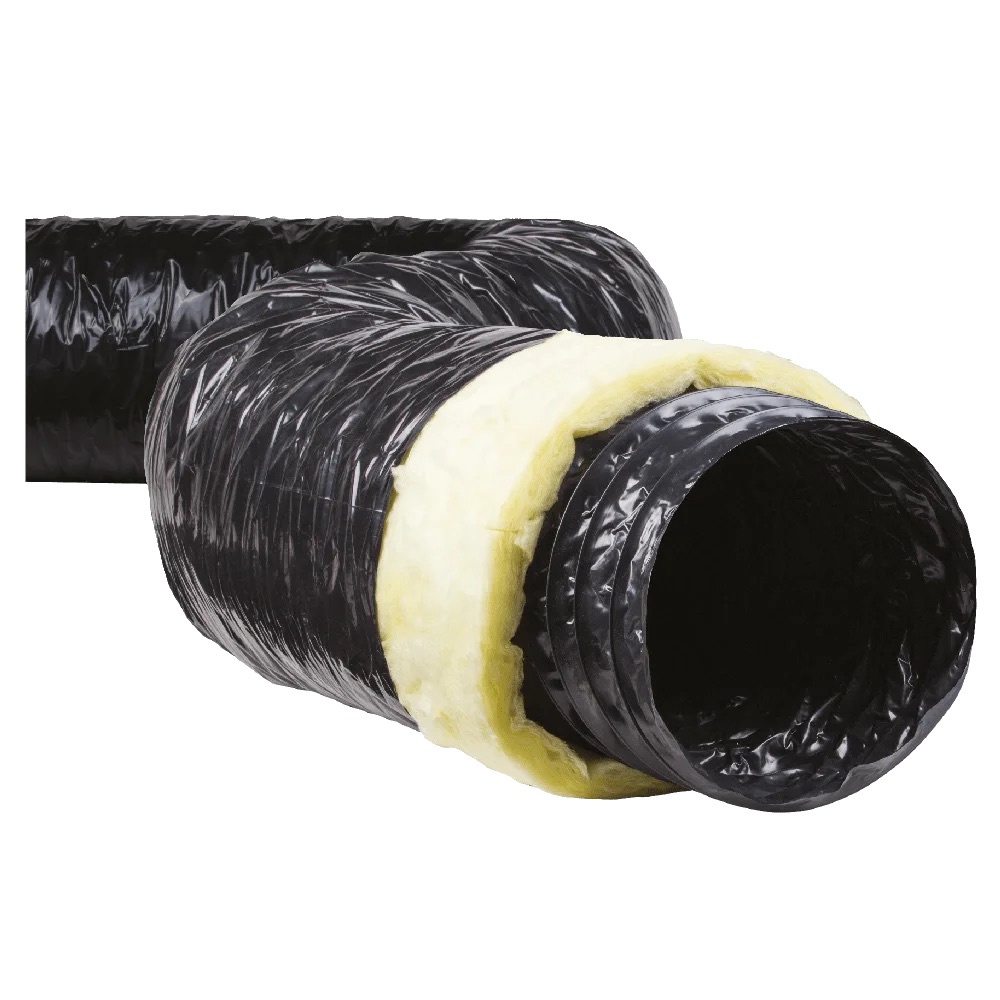

PE Flexible Air Ducts
Inner Duct Construction
1 ply PE
Nominal Thickness of Inner Duct
100 micron
Jacket Construction
1 ply PE
Nominal Thickness of Jacket
100 micron
Insulation-Thickness-Density
Glasswool 25 mm – 16 kg/m³
Diameter Range(Ø)
3 – 30 inches / 82 mm – 800 mm
Standard Lenght
32 ft / 10 m

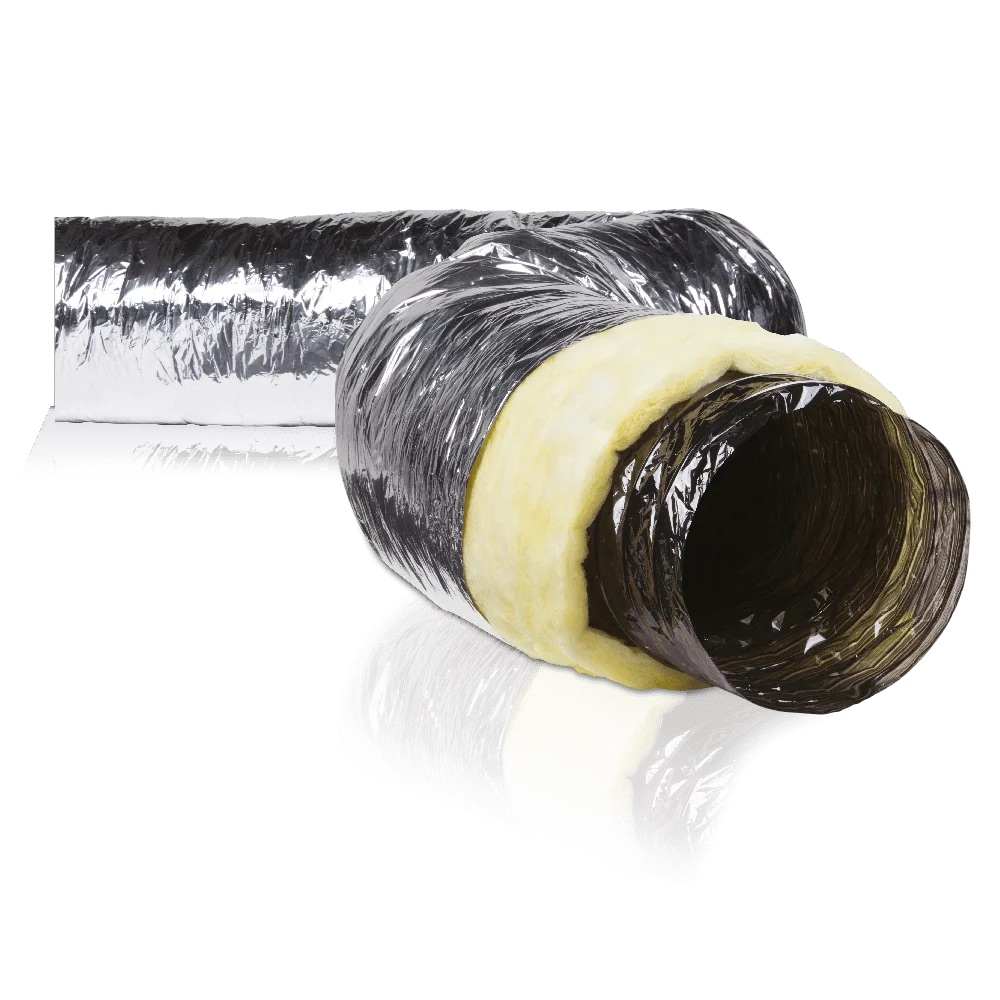

Polyester Flexible Air Ducts
Inner Duct Construction
2 ply Black Polyester
Nominal Thickness of Inner Duct
30 Micron
Jacket Construction
2 ply Metallized Polyester
Nominal Thickness of Jacket
30 Micron
Insulation-Thickness-Density
Glasswool 25 mm – 16 kg/m³
Diameter Range(Ø)
3 – 20 inches / 82 mm – 508 mm
Standard Lenght
25 ft / 7,6 m
PVC Flexible Air Ducts
Inner Duct Construction
PVC Coated Polyester Fabric
Nominal Thickness of Inner Duct
220 Micron
Jacket Construction
1 ply PE
Nominal Thickness of Jacket
100 Micron
Insulation-Thickness-Density
Glasswool 25 mm – 16 kg/m³
Diameter Range(Ø)
4 – 20 inches / 104 mm – 508 mm
Standard Lenght
20 ft / 6 m
Non Insulated Flexible Air Ducts

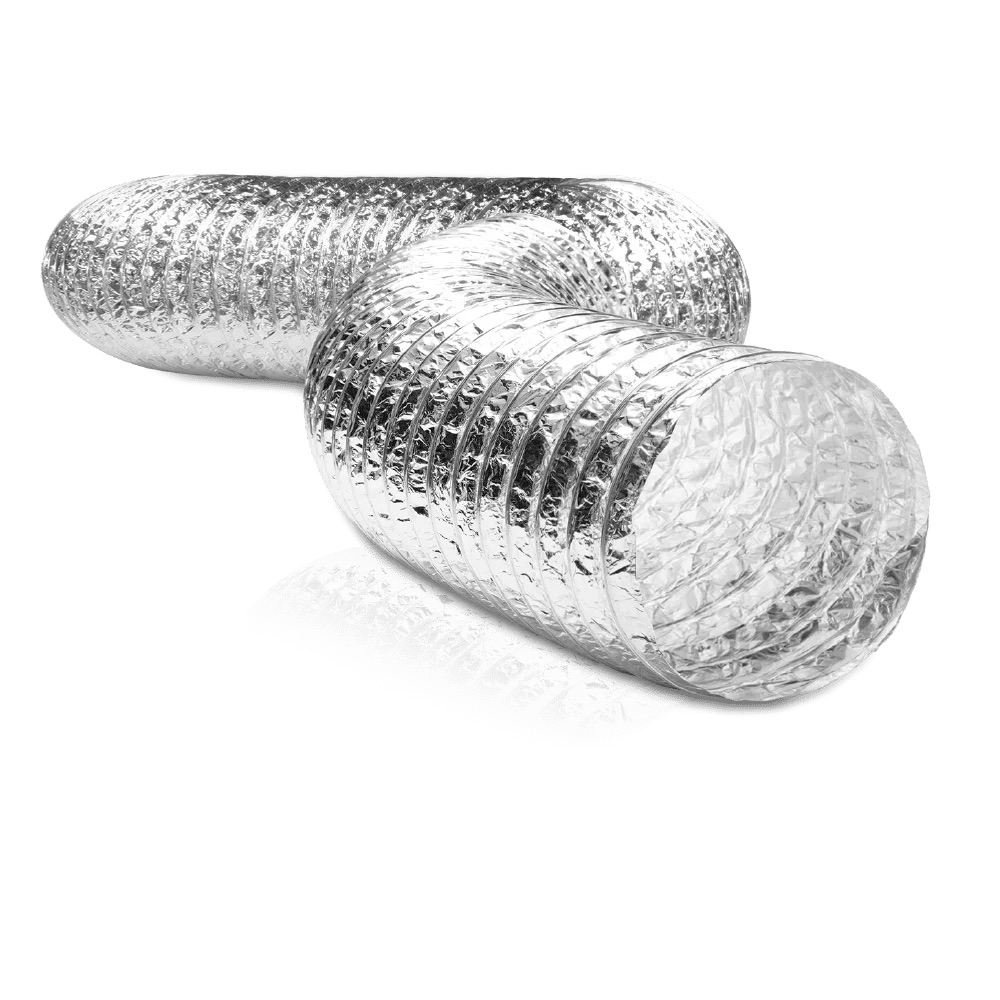

Aluminium Flexible Air Ducts
Duct Construction
3 ply Aluminium + 2 ply Polyester
Nominal Thickness
70 micron
Diameter Range(Ø)
2 – 30 inches / 52 mm – 800 mm
Standard Lenght
32 ft / 10 m

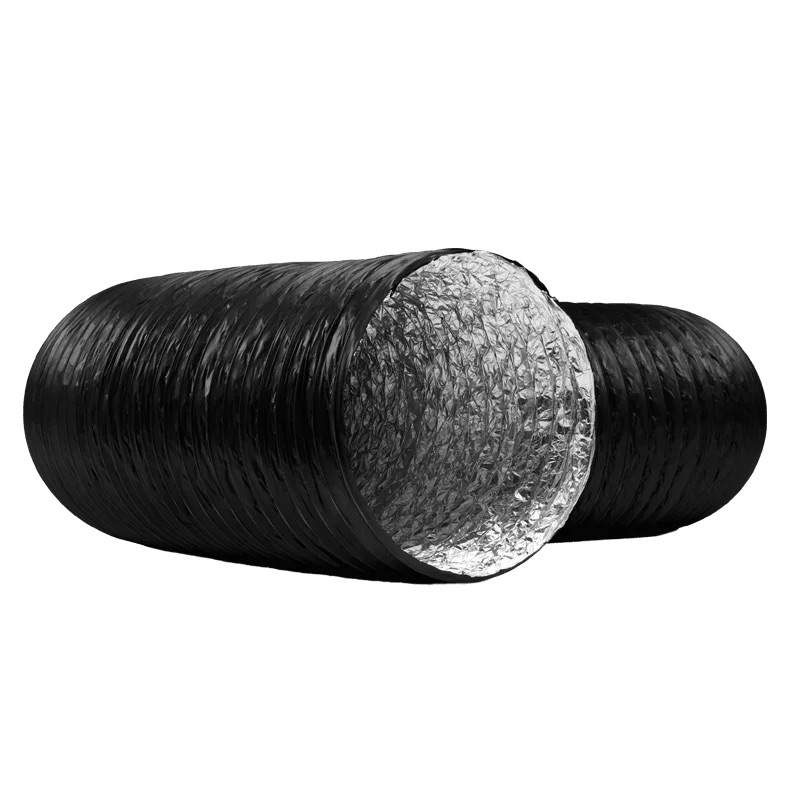

Aluminium & PVC Combined Flexible Air Ducts
Duct Construction
3 ply Aluminium + 2 ply Polyester + 1 ply PVC
Nominal Thickness
150 micron
Diameter Range(Ø)
2 – 30 inches / 52 mm – 800 mm
Standard Lenght
32 ft / 10 m

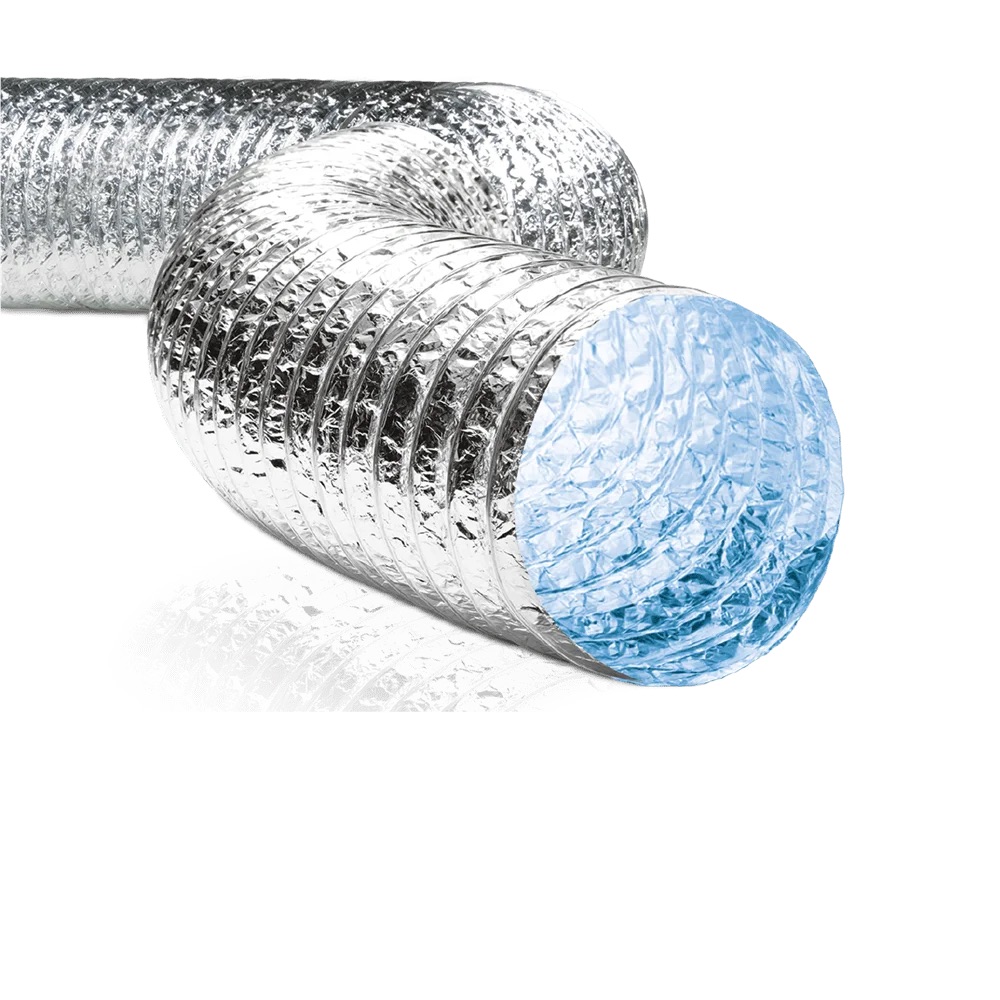

Anti-Microbial Flexible Air Ducts
Duct Construction
3 ply Aluminium + 2 ply Polyester + Hygiene Coating
Nominal Thickness
70 micron + Hygiene Coating
Diameter Range(Ø)
4 – 30 inches / 102 mm – 800 mm
Standard Lenght
32 ft / 10 m

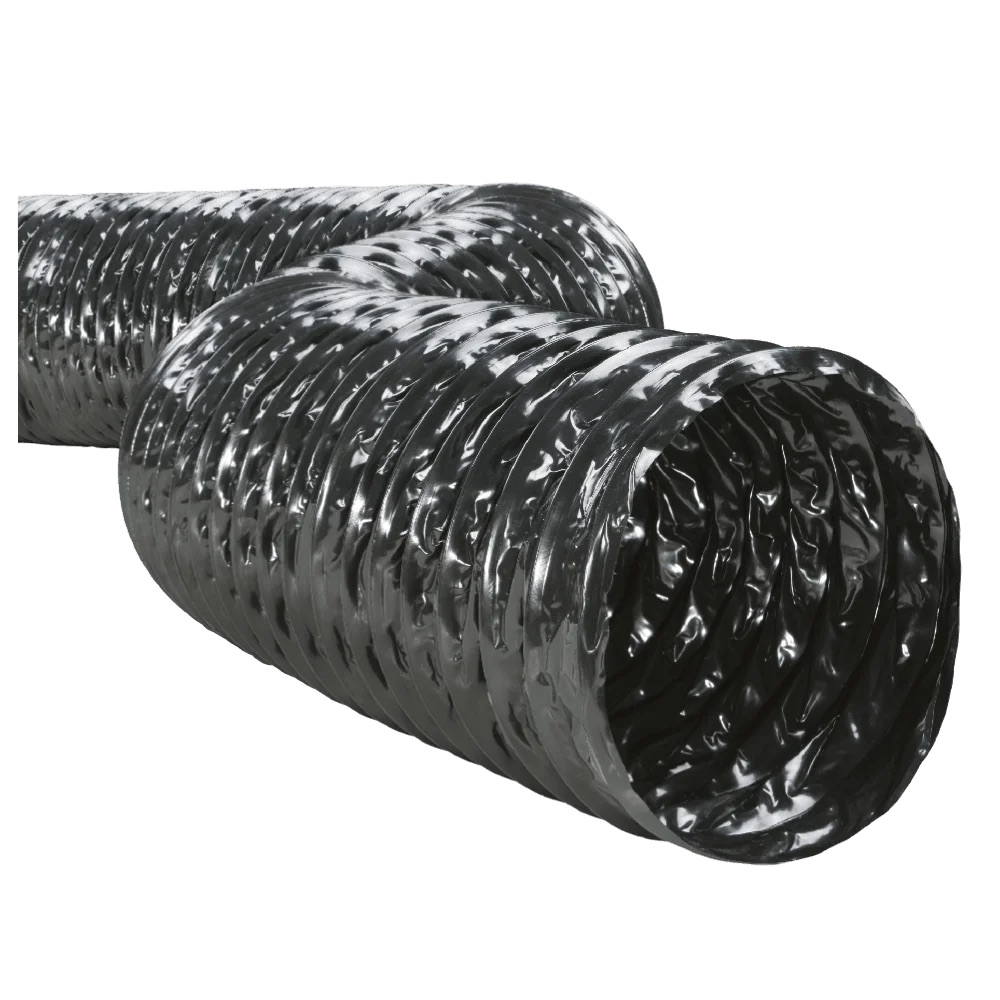

PE Flexible Air Ducts
Duct Construction
1 ply PE
Nominal Thickness
100 micron
Diameter Range(Ø)
3 – 30 inches / 82 mm – 800 mm
Standard Lenght
32 ft / 10 m

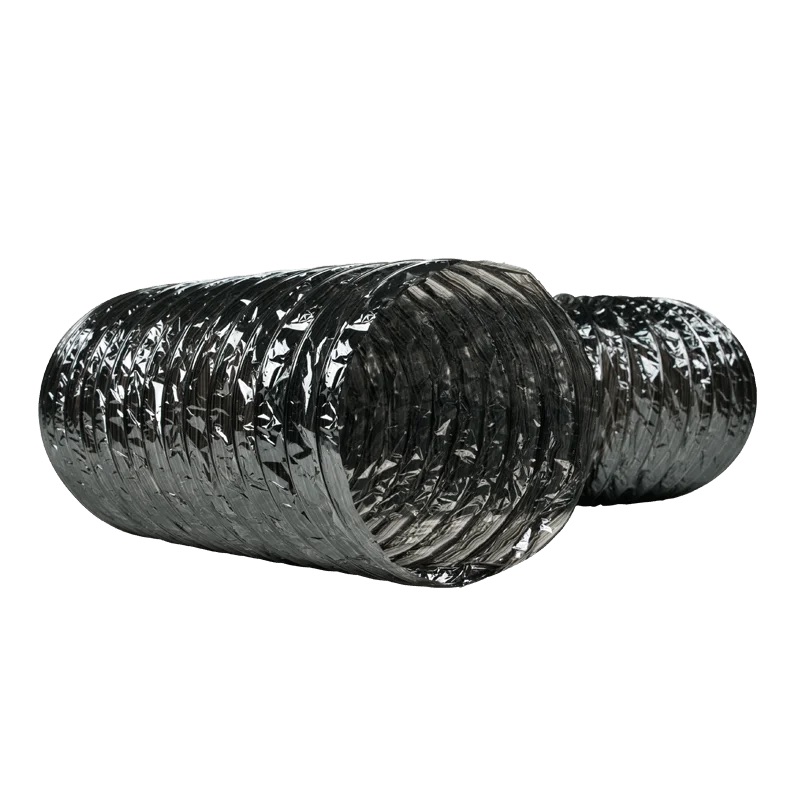

Polyester Flexible Air Ducts
Duct Construction
2 Ply Black Polyester
Nominal Thickness
30 Micron
Diameter Range(Ø)
3 – 30 inches / 82 mm – 800 mm
Standard Lenght
25 ft / 7,6 m

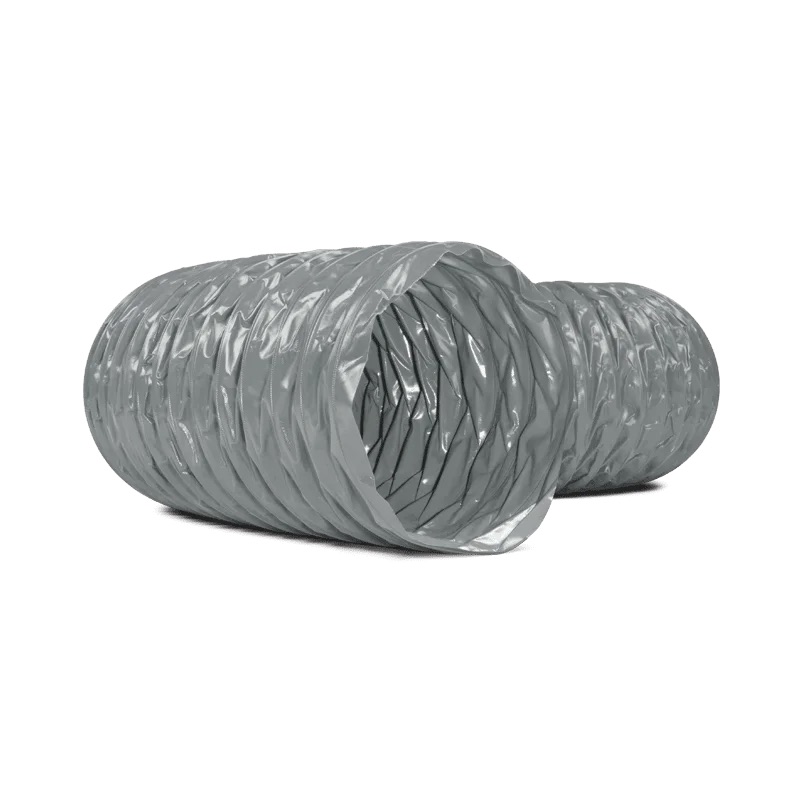

PVC Flexible Air Ducts
Duct Construction
1Ply PVC Coated Polyester
Nominal Thickness
220 Micron
Diameter Range(Ø)
2 – 30 inches / 52 mm – 800 mm
Standard Lenght
32 ft / 10 m
Duct Insulation Sleeves

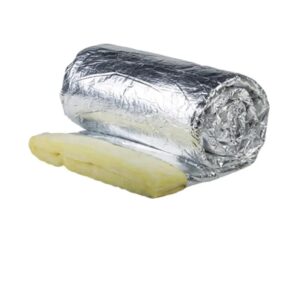

Aluminium Insulation Sleeves

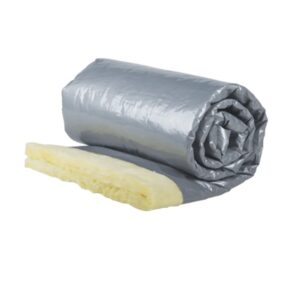

PE Insulation Sleeves
