Our solution partner can produce Cold Drawn Special Steel Profiles from almost all kind of steel grades including stainless steels. Annual production capacity is approximately 10.000 ton. Over 65 of products are exported to many countries.
Designs and manufacturing of tools for Cold Drawn Special Steel Profiles are made in their own plant. Moreover, all tests belonging to the production of profiles are done in their own laboratories.
Production Range
Main Steel Types: Structural steels, QT steels, Free-cutting steels, Case hardening steels, Ball and roller bearing steels, Stainless steels, Tool steels, Heat resistant steels
Lenght: As customers requirements upto 9 meters and can be cutted in customer lenghts. General lenght is between 3000-4000mm.
Cross Section Area: 20mm² – 4000mm² and maximum dimension is around 75mm.
Straightness: 2mm/meter as standart. By considering requirement of the customer and the geometry of the profile, can be made more precise
General Roughness: Ra<3,2 (better roughness if required)
General Tolerances: DIN ISO 2768-mL or customer request
Packing: With oil & VCI papers to prevent corrosion is wooden cases (max 1000kgs)
Advantages of Steel Profiles
- Repeatable measurements and precision on dimensions.
- Precision on surface roughness.
- Same or very close cross sections according to final geometry
- Material, labor, energy, scrap saving due to less machining.
- High strength due to the cold drawing process.
- Reaching to final part with the optimal costs.
Products

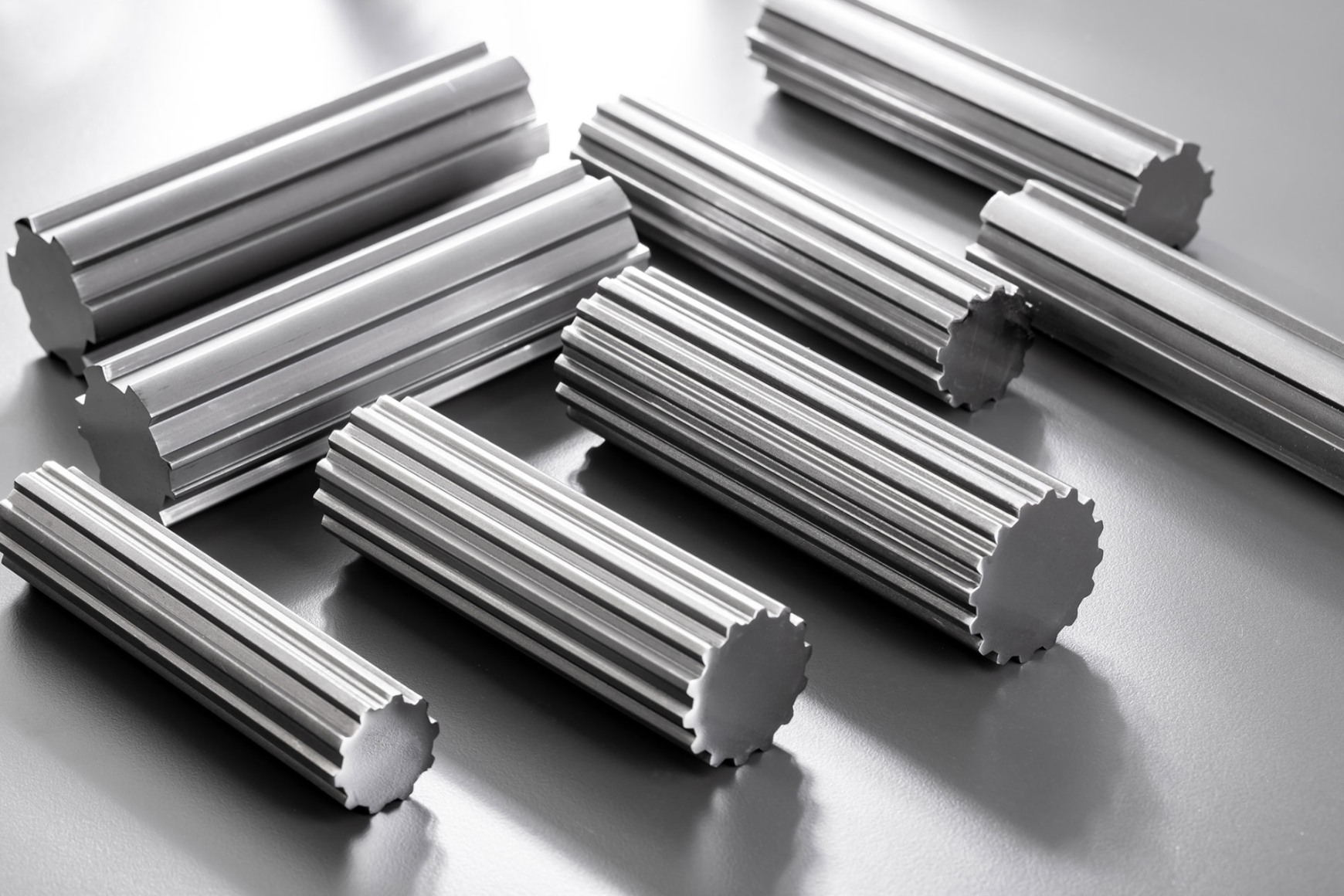

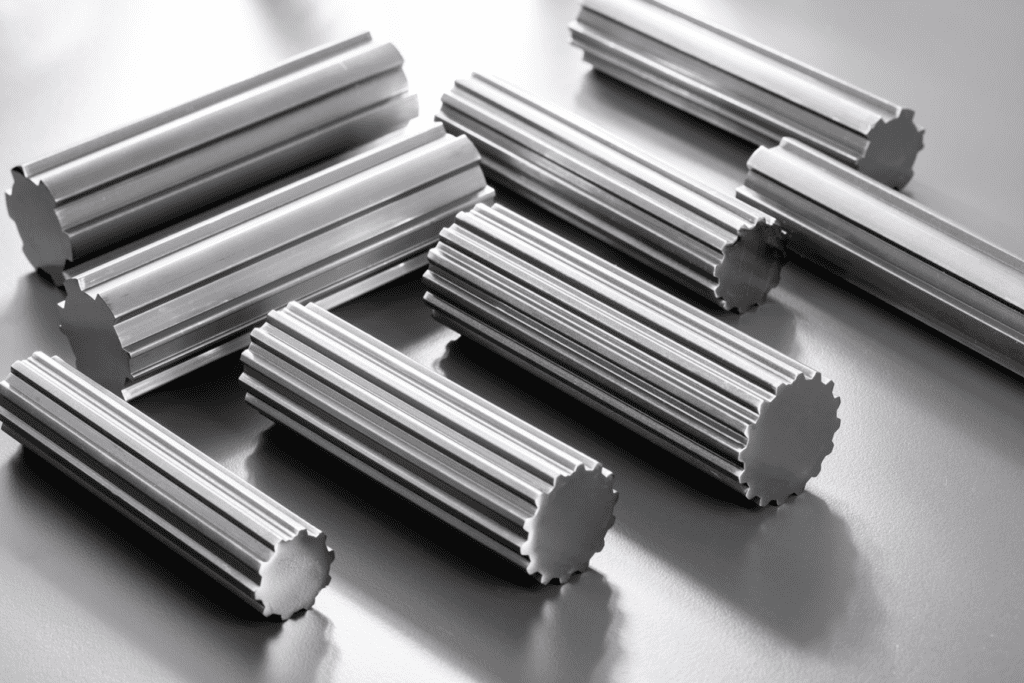

Spline Shaft

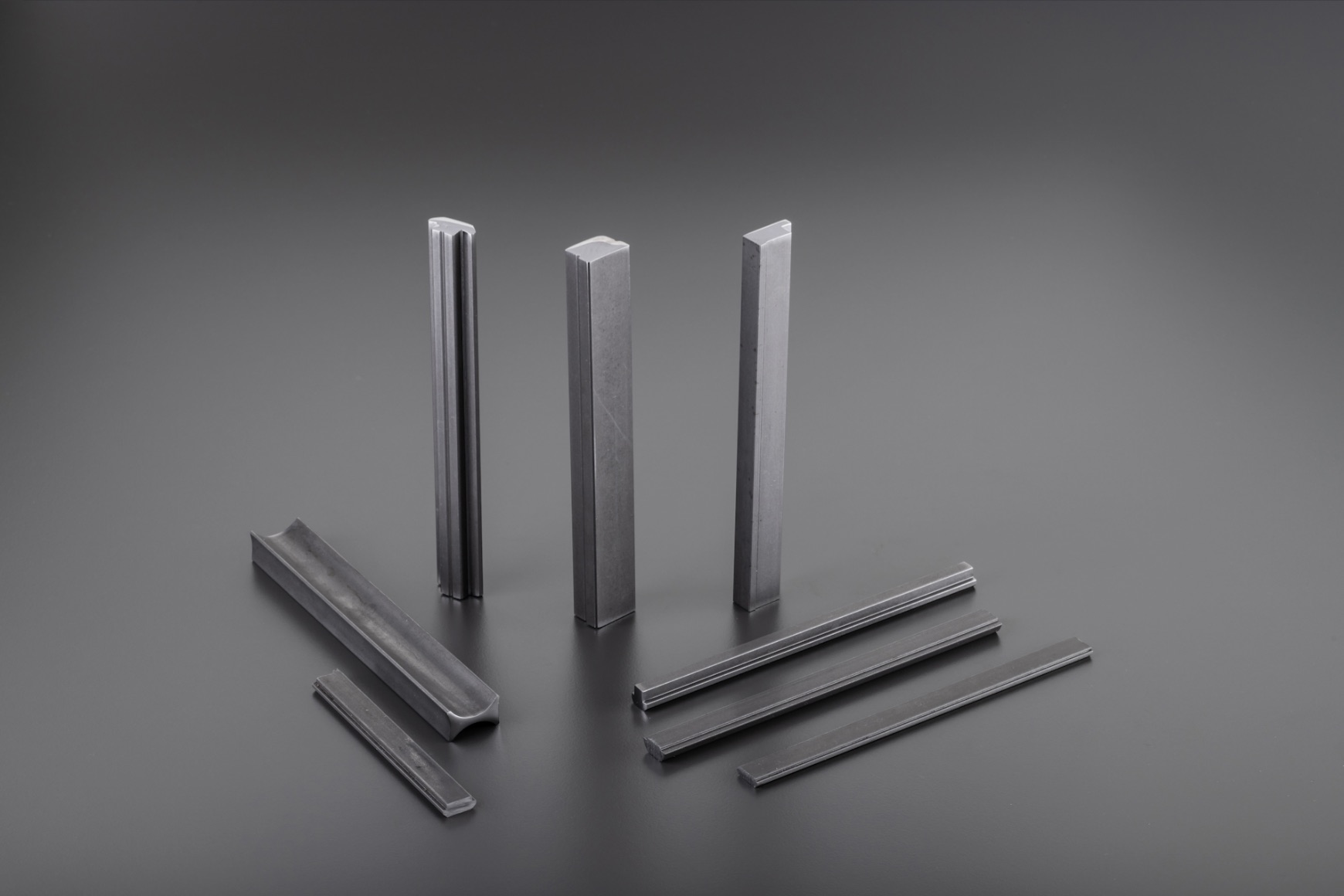

T-Nuts
Firearms

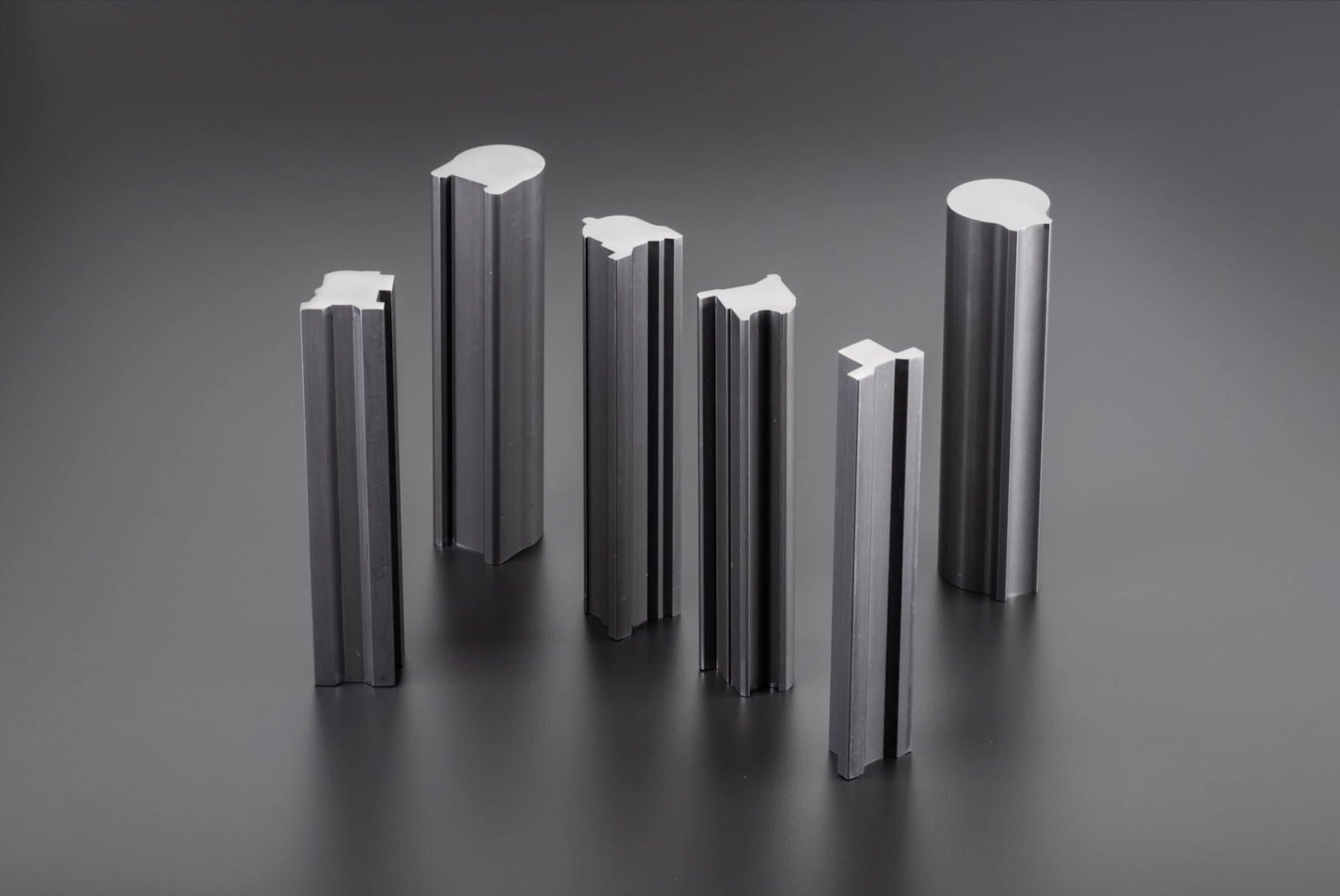

Shotgun

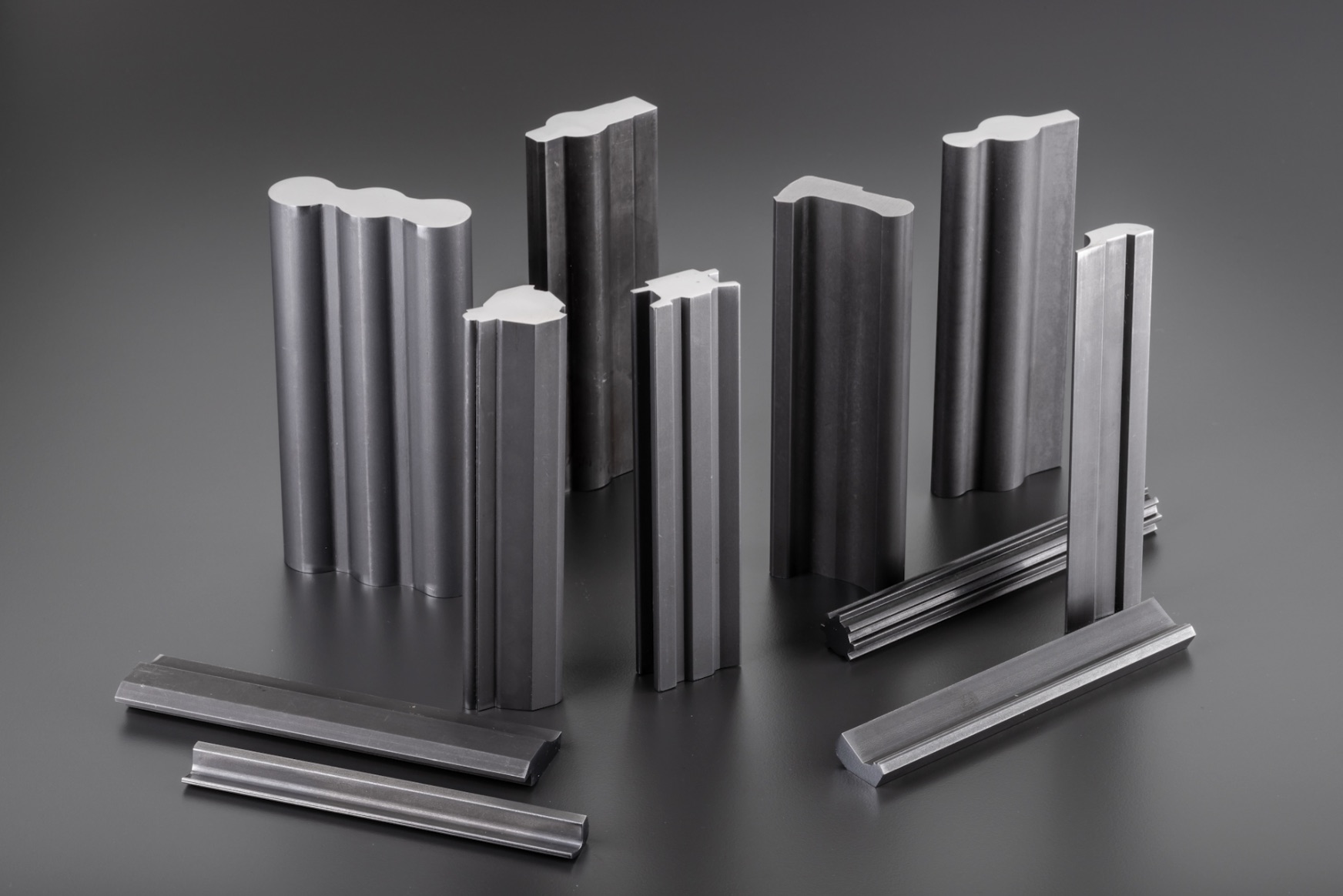

Rifle

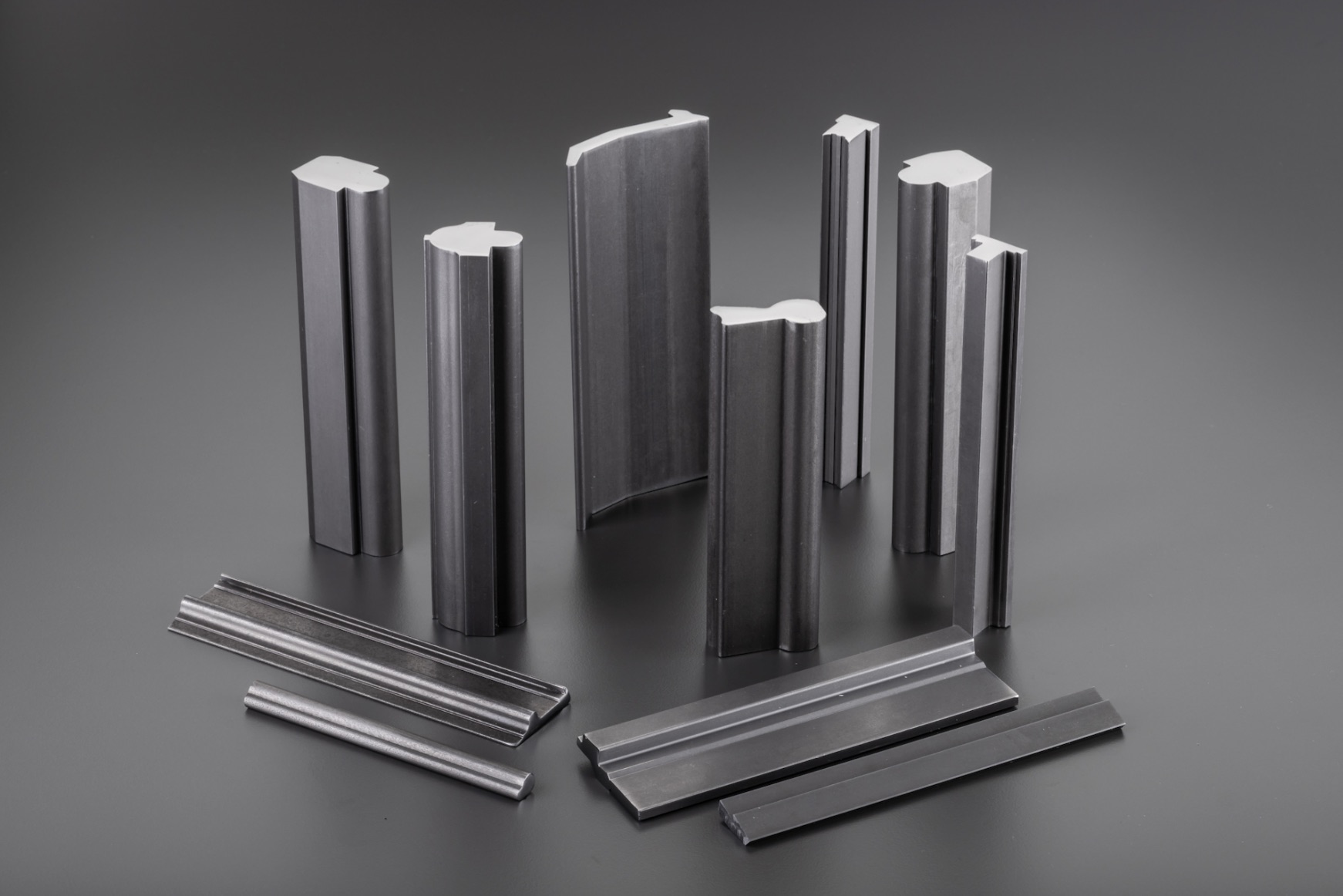

Pistol
Automotive

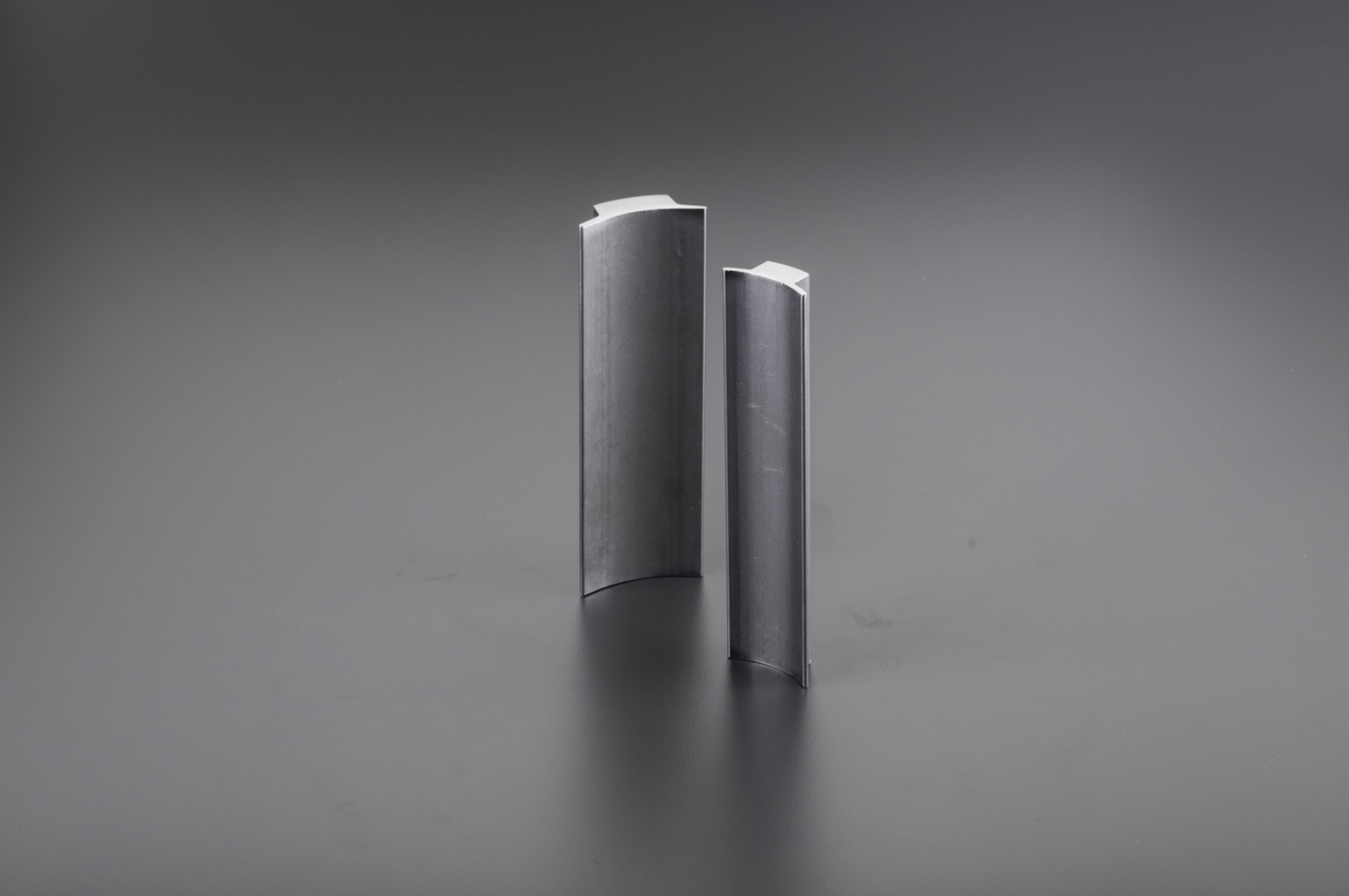

Starting Motor Systems

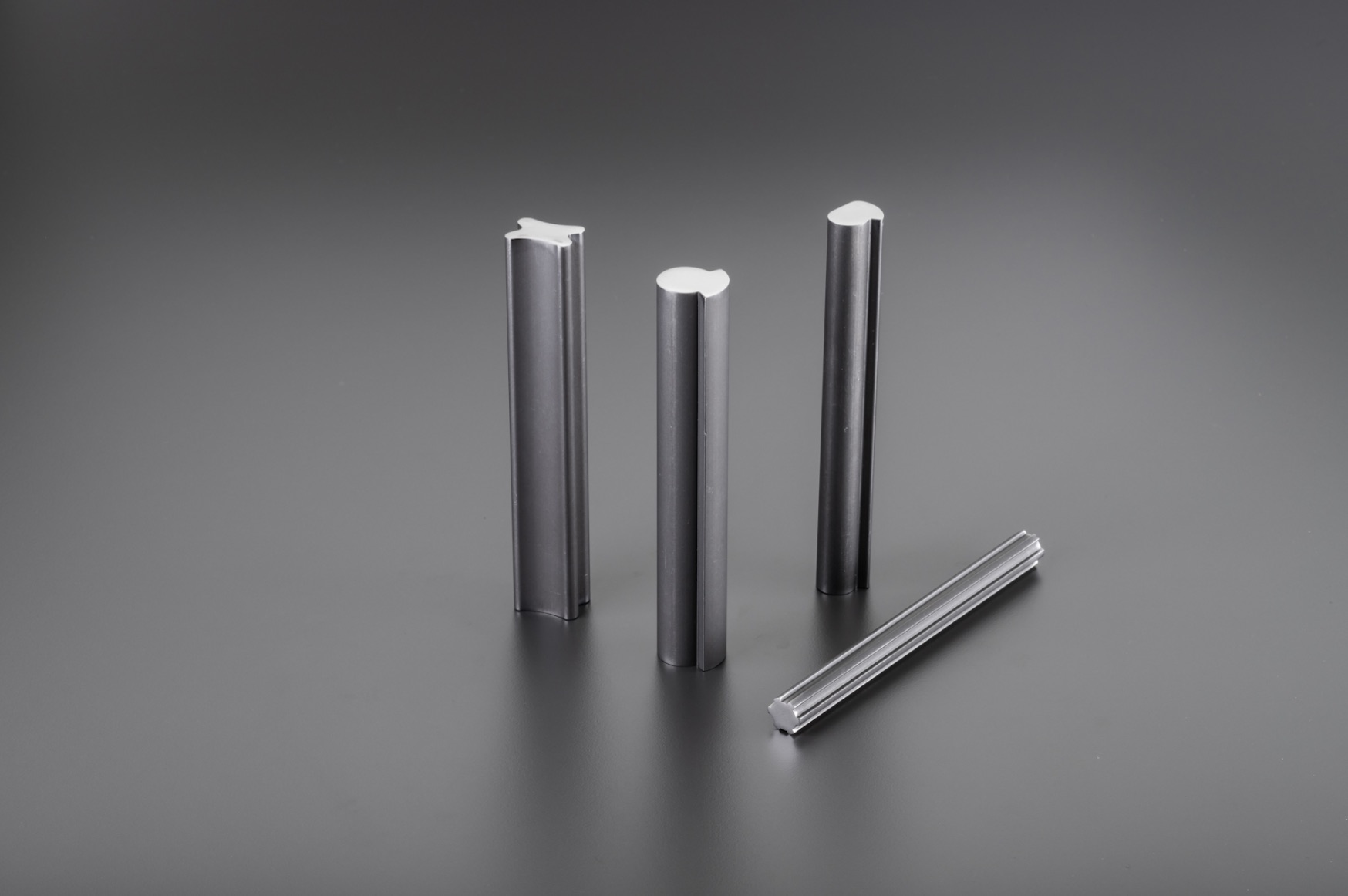

Seat Systems

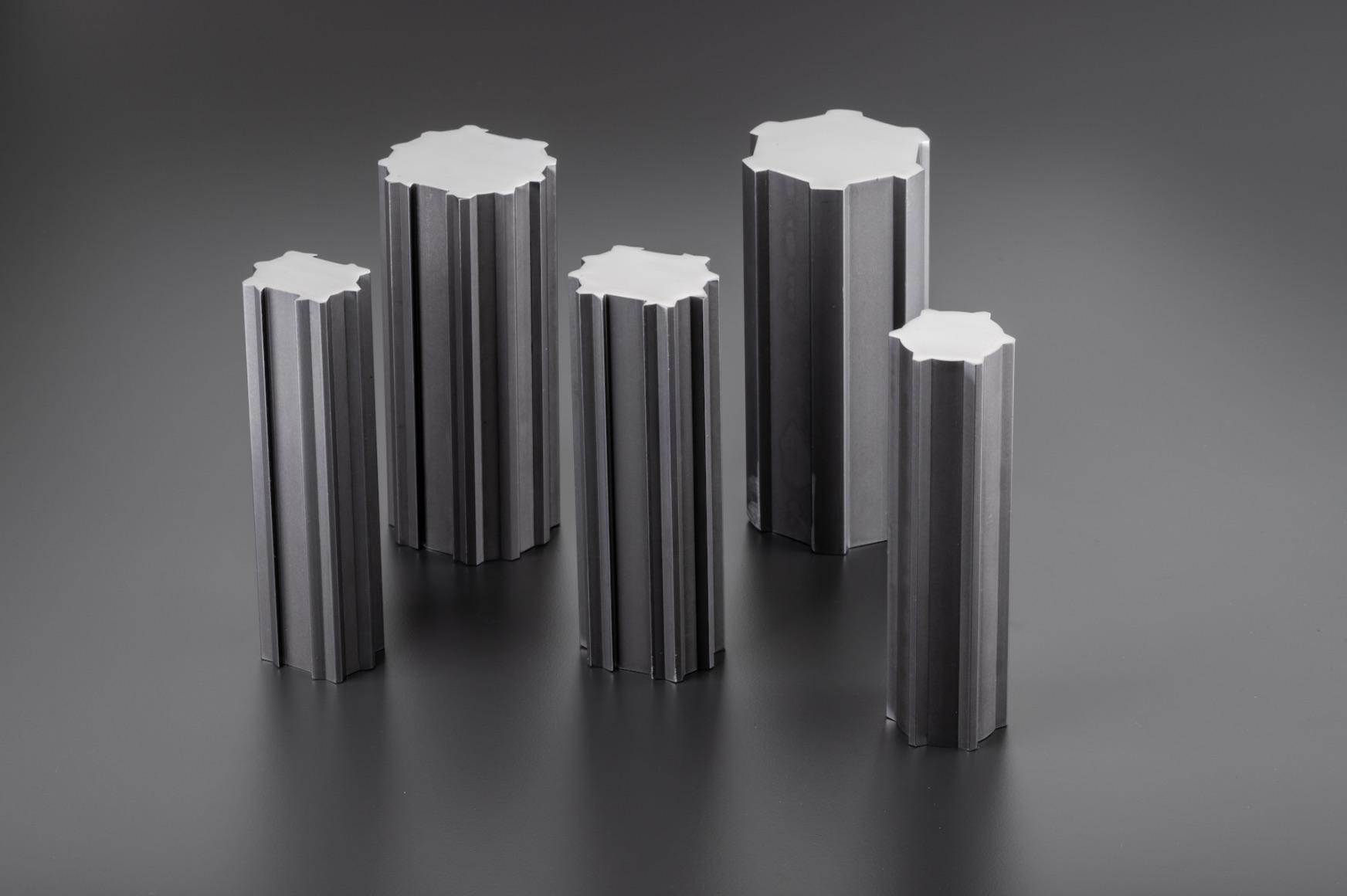

Clutch Systems
Construction

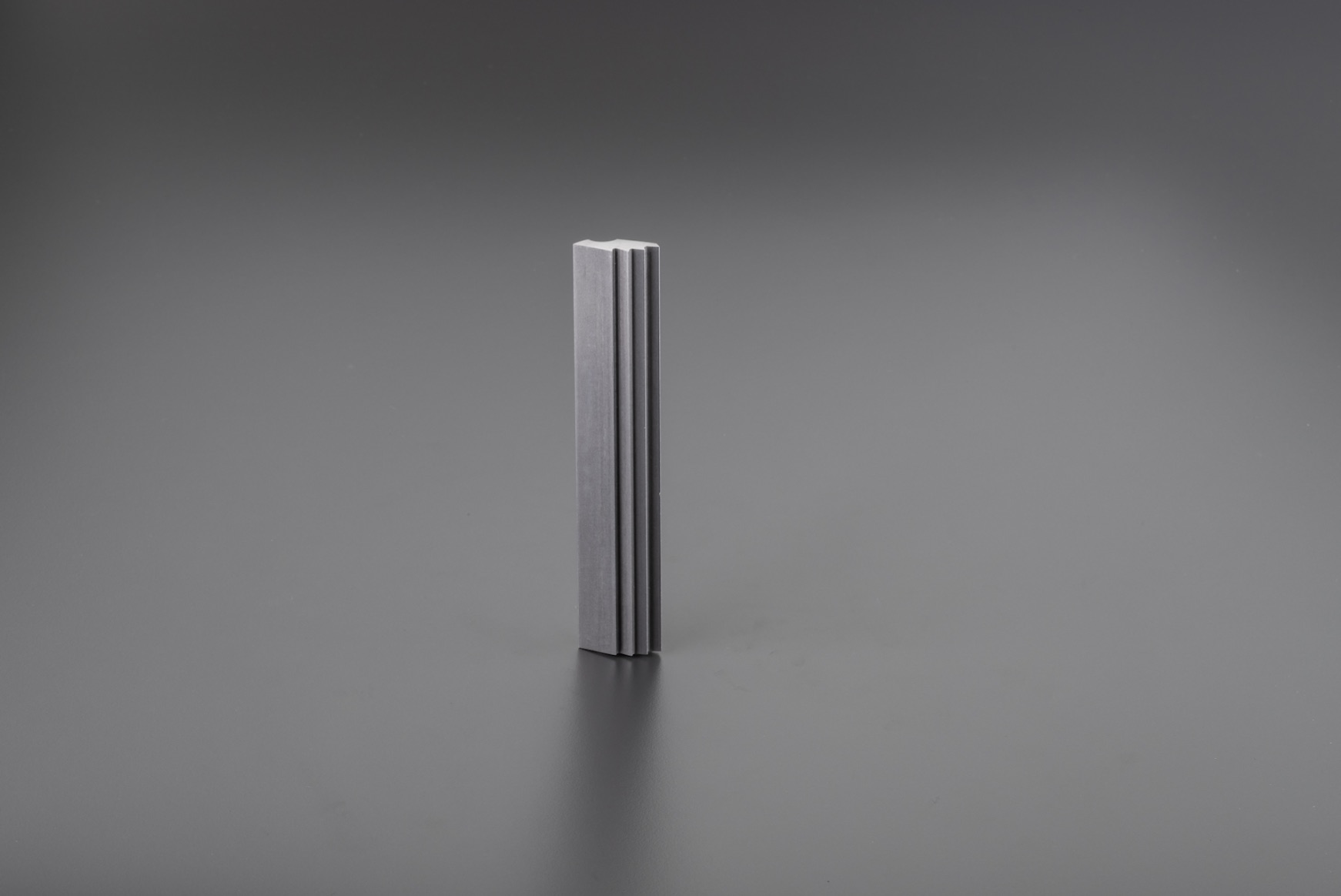

Seals for Pipe Fittings

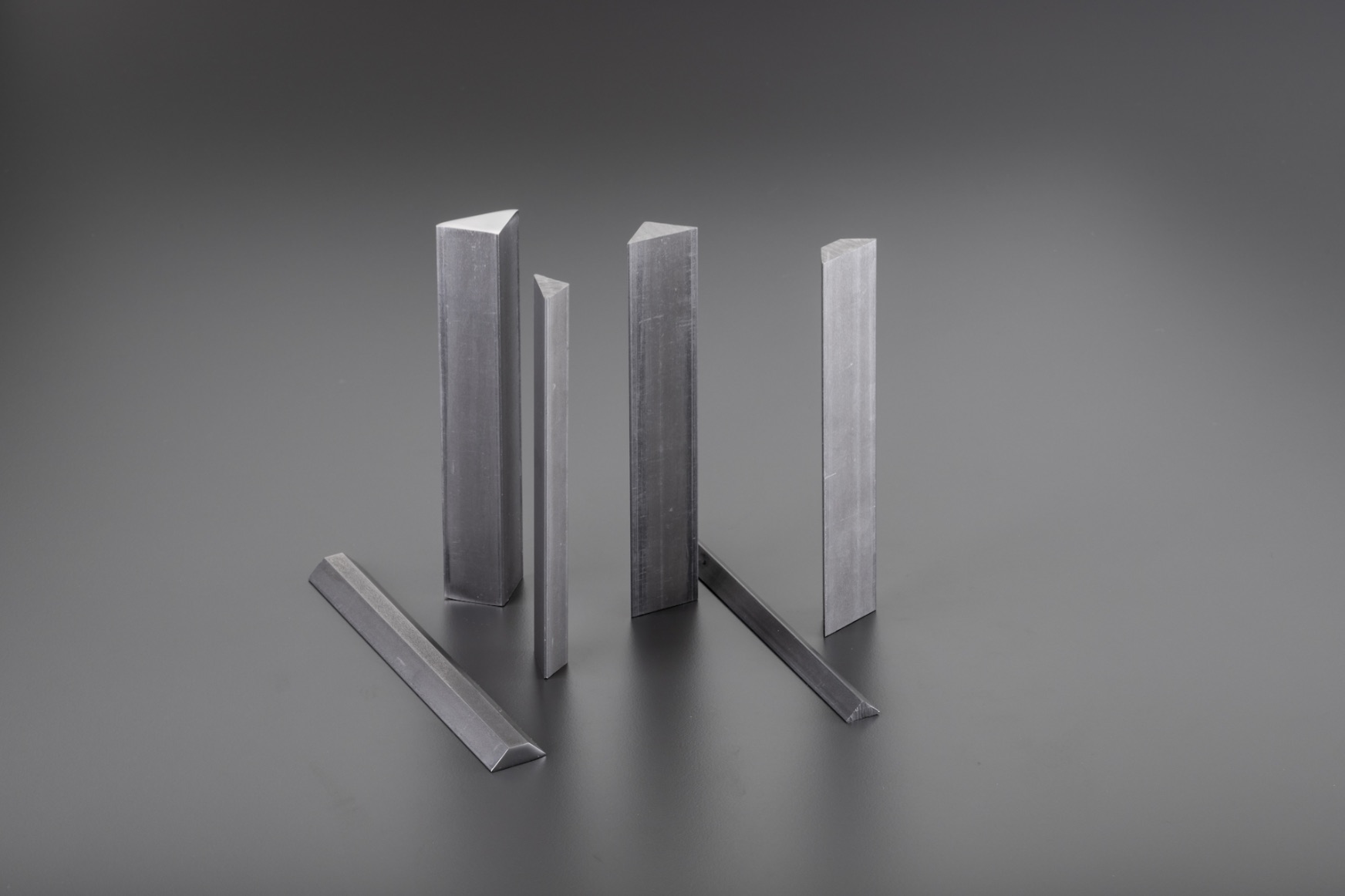

Triangel Chamfer

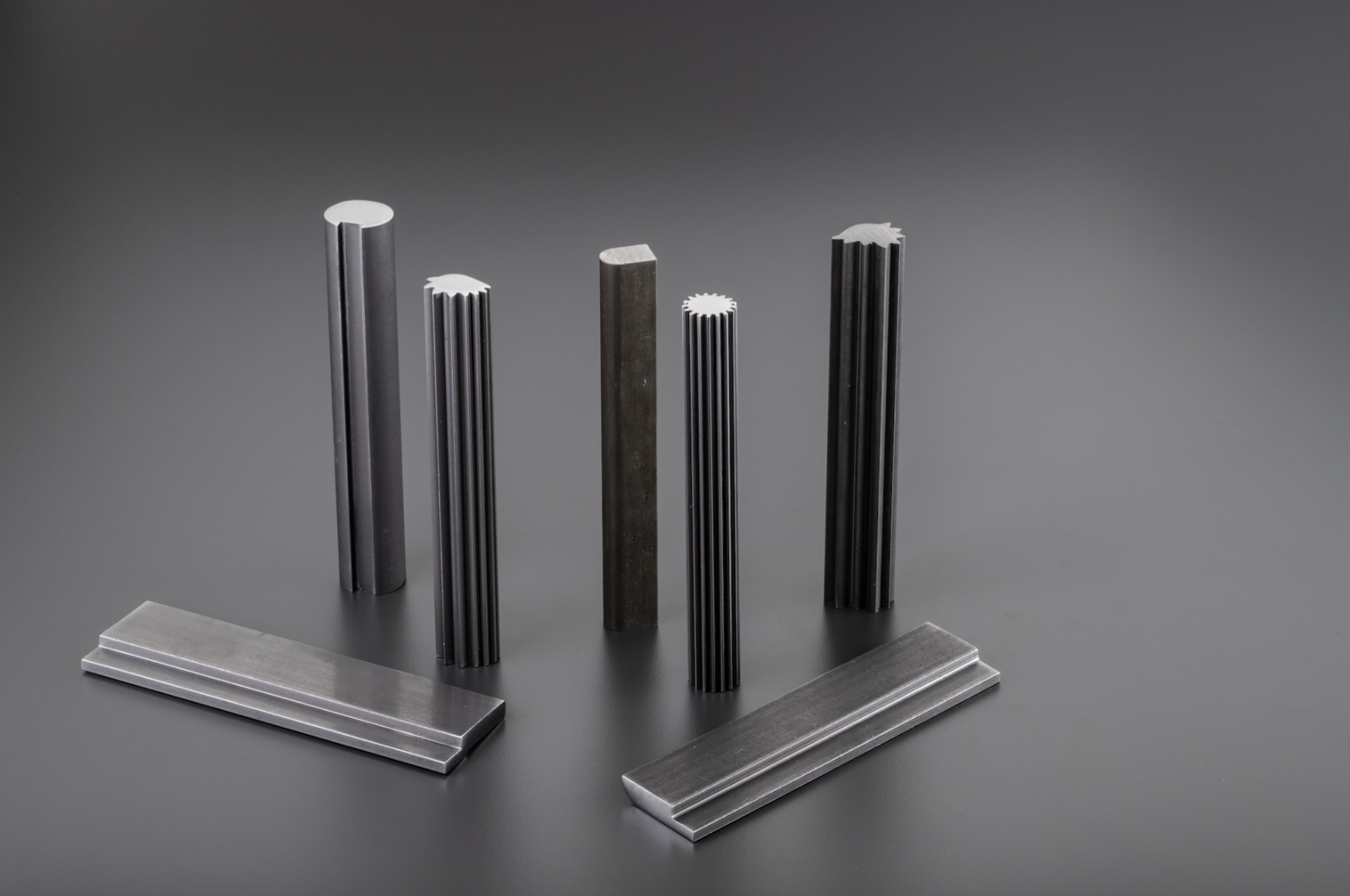

Door and Locking Systems

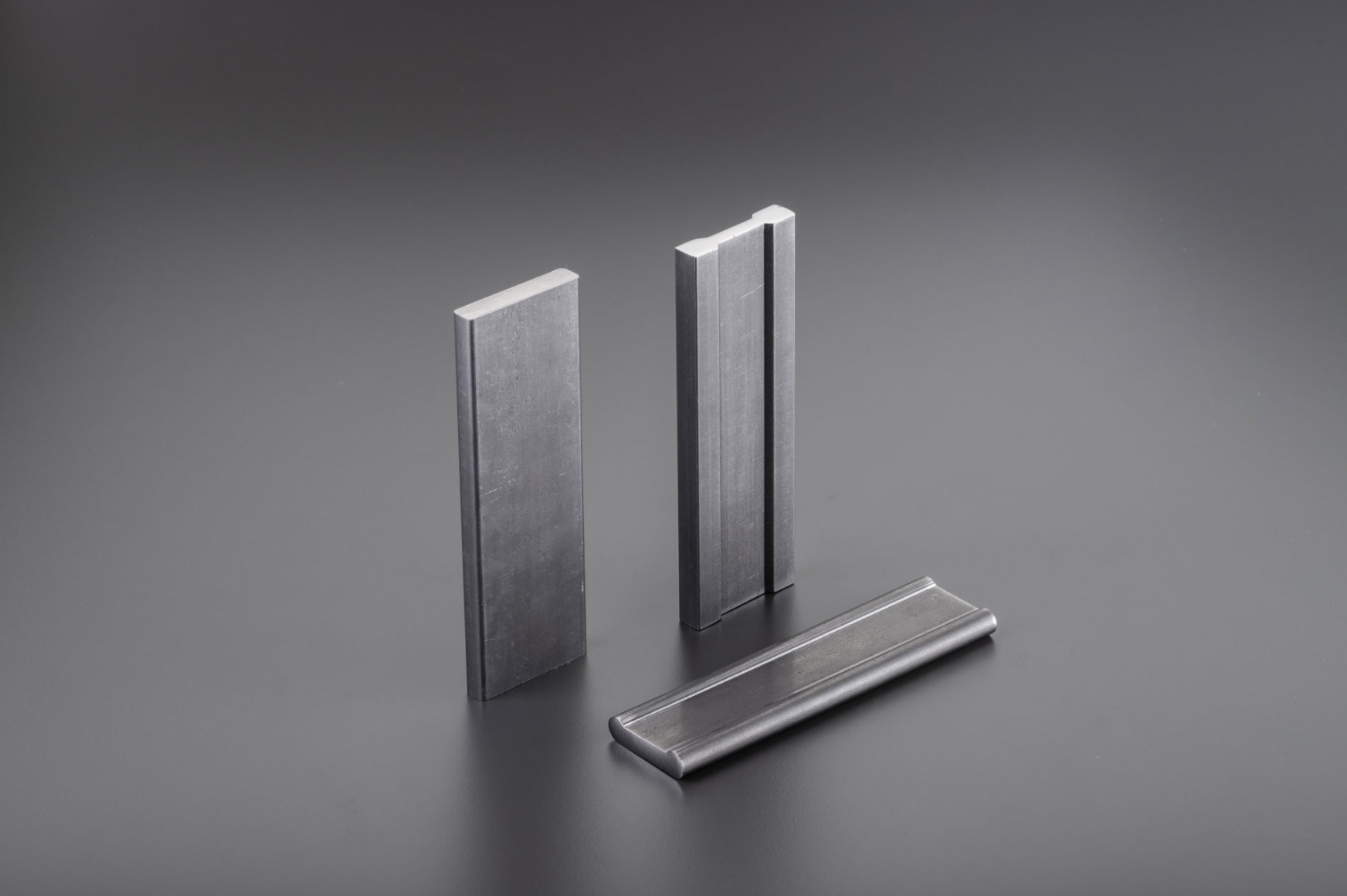

Elevator

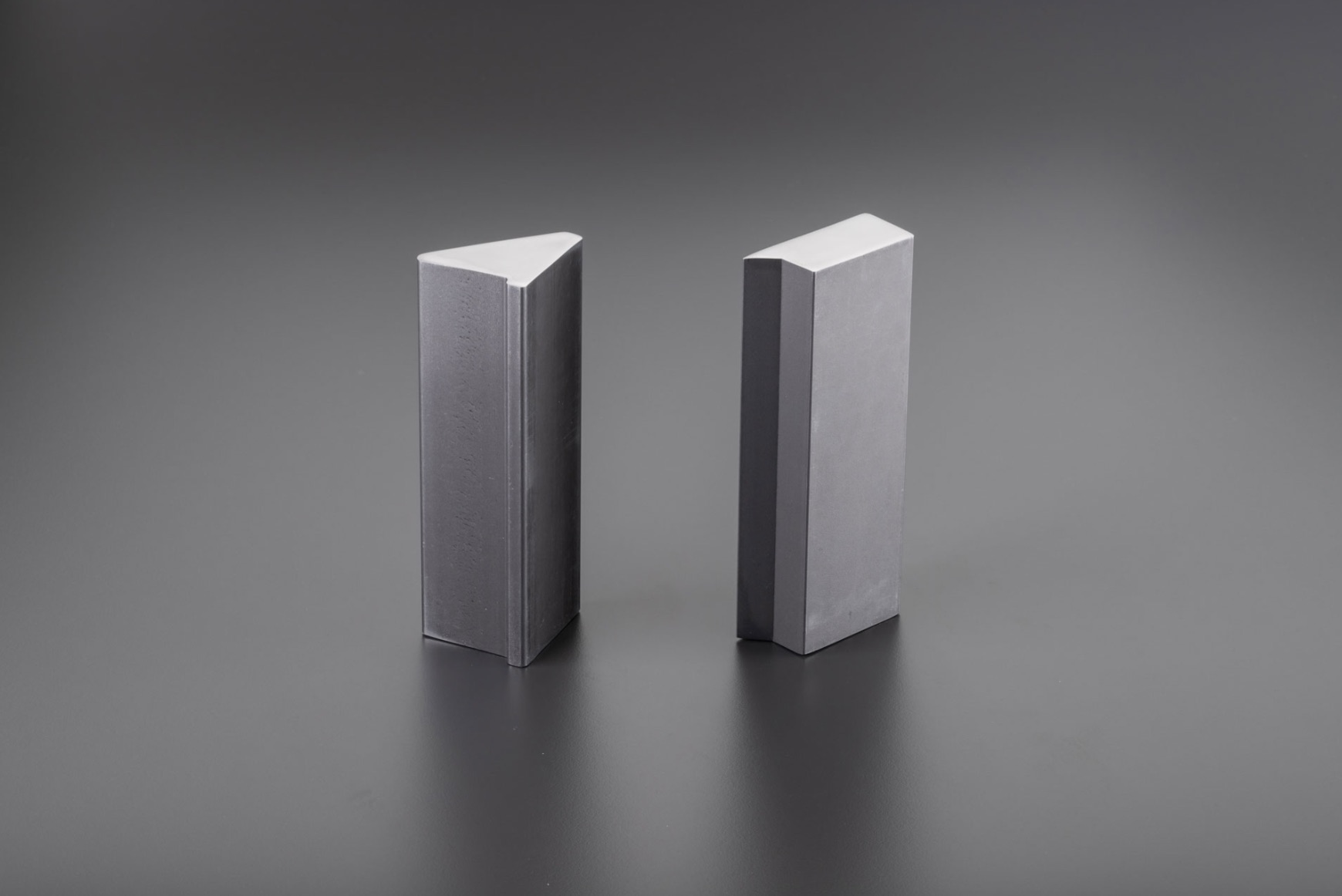

Construction Machinery
Machinery

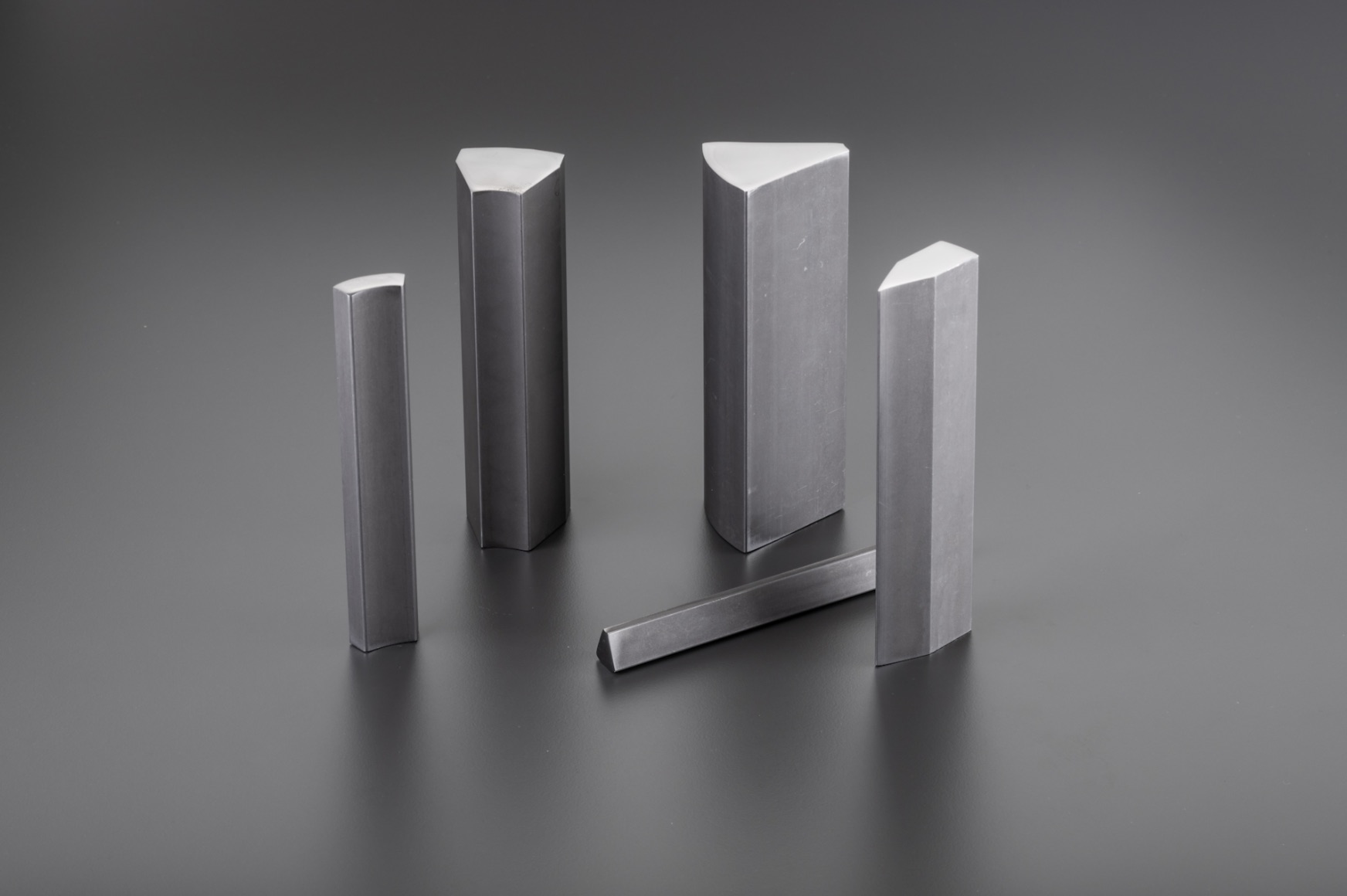

Crimping Machine

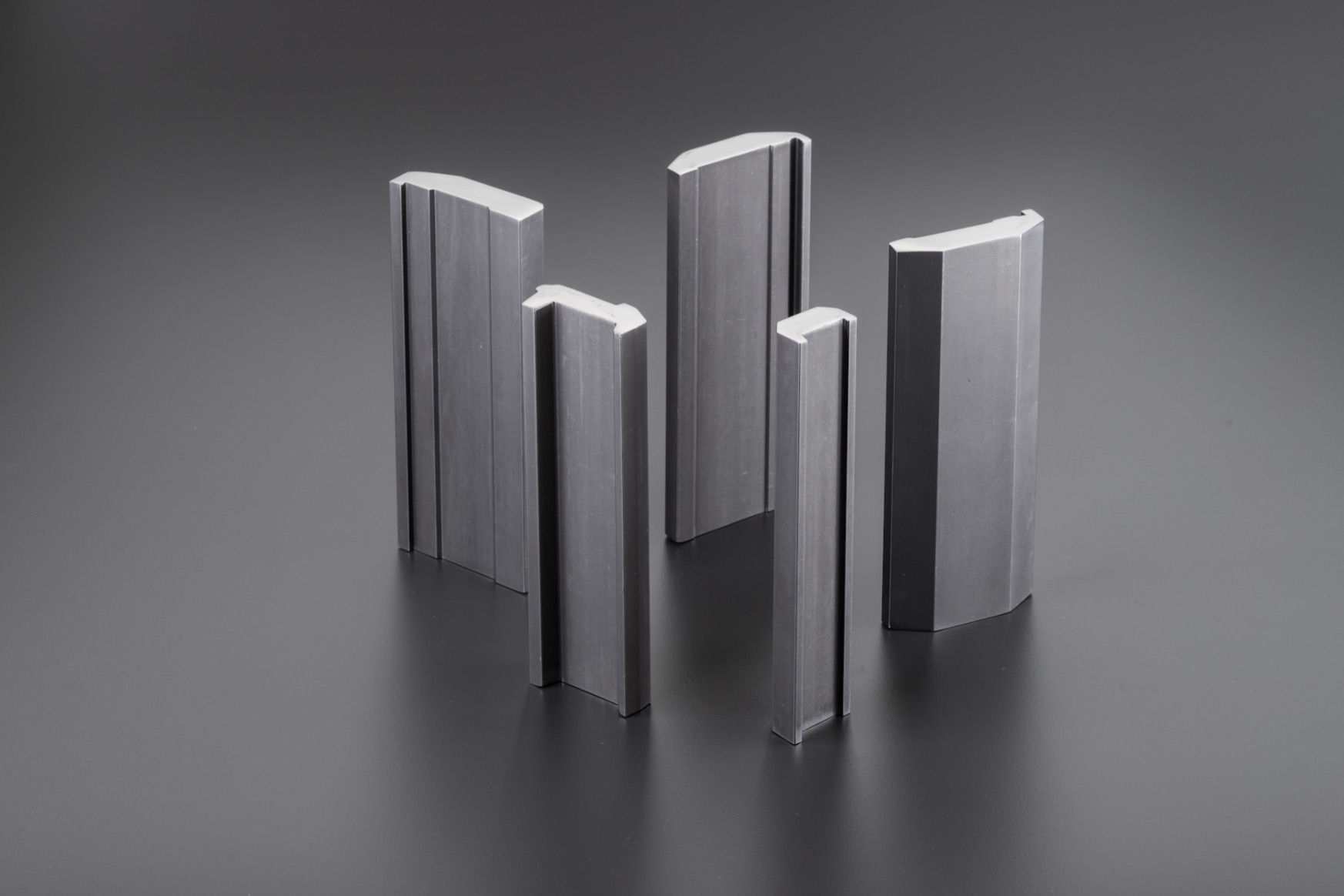

Bending Machine
Agriculture

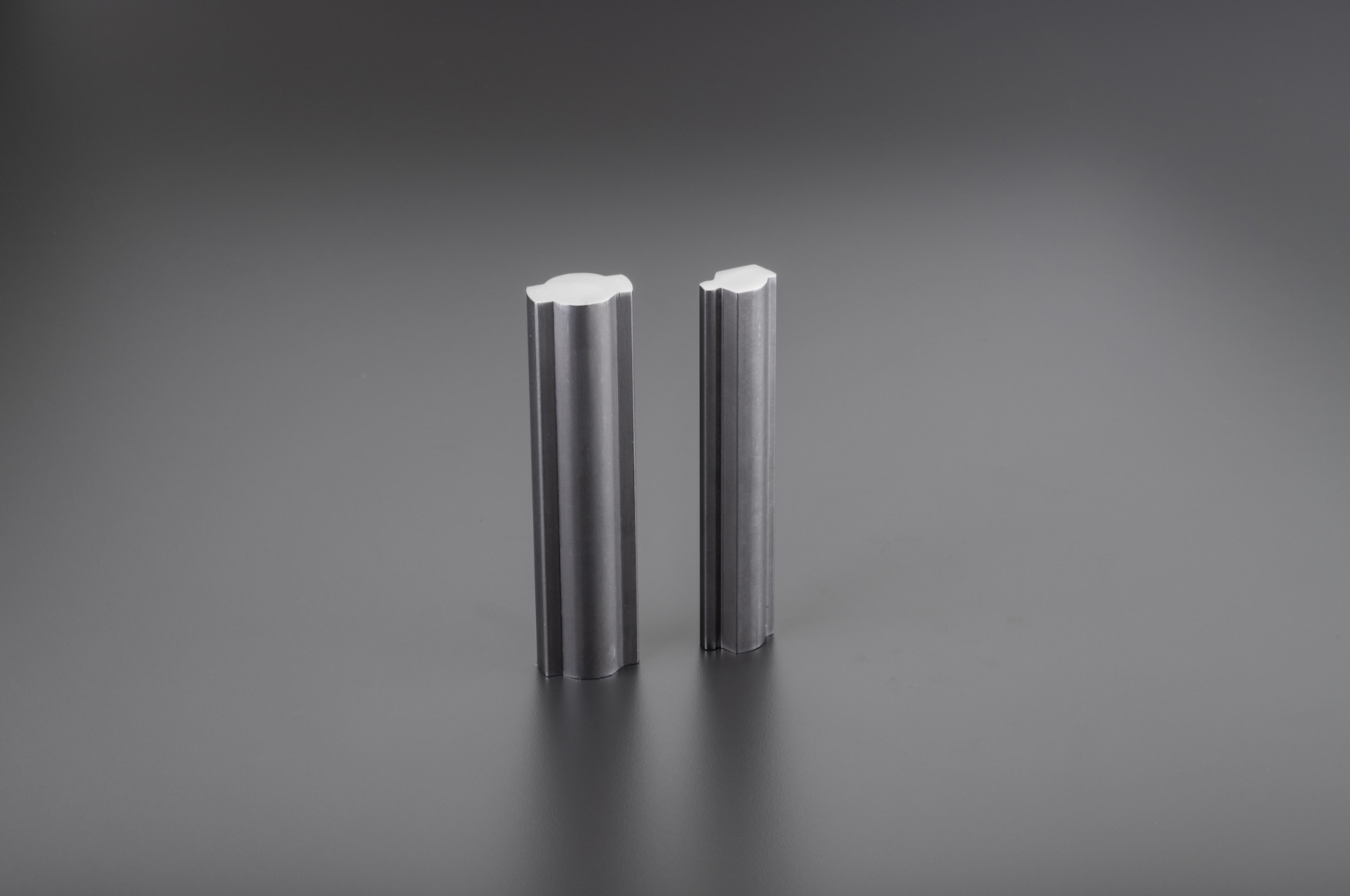

Tractors

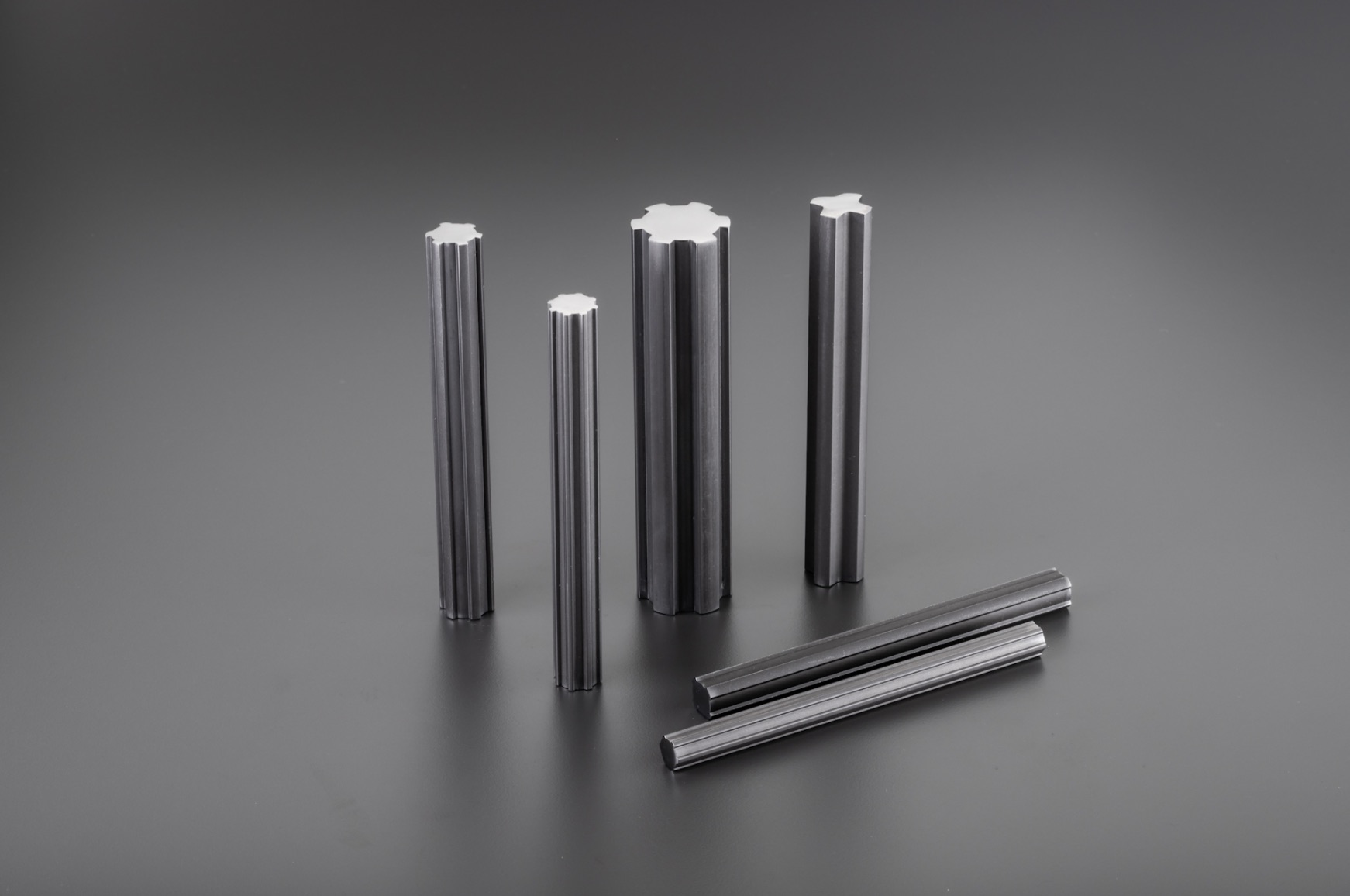

Pumps

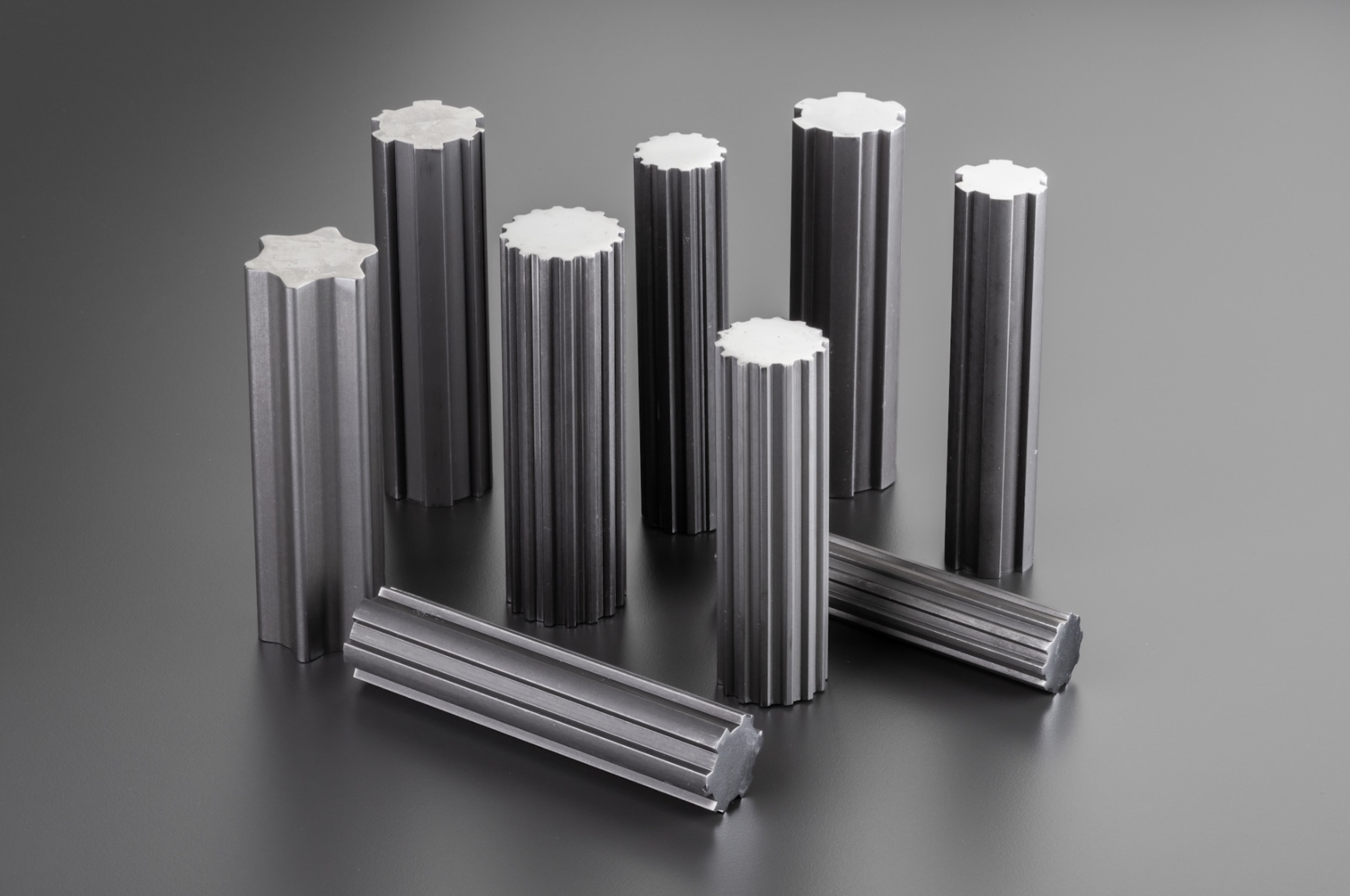

PTO Shafts
General Manufacturing

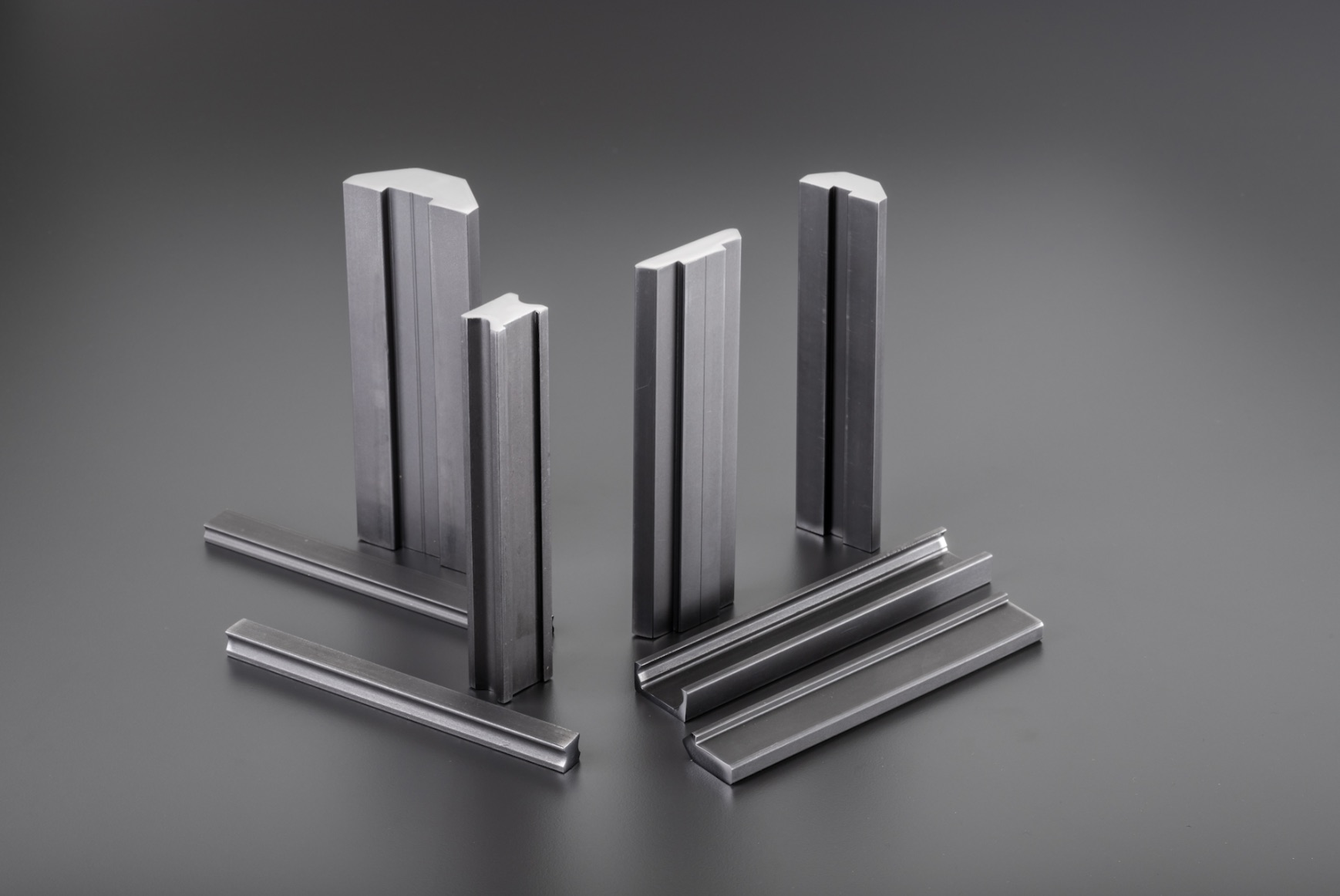

Sliding Systems

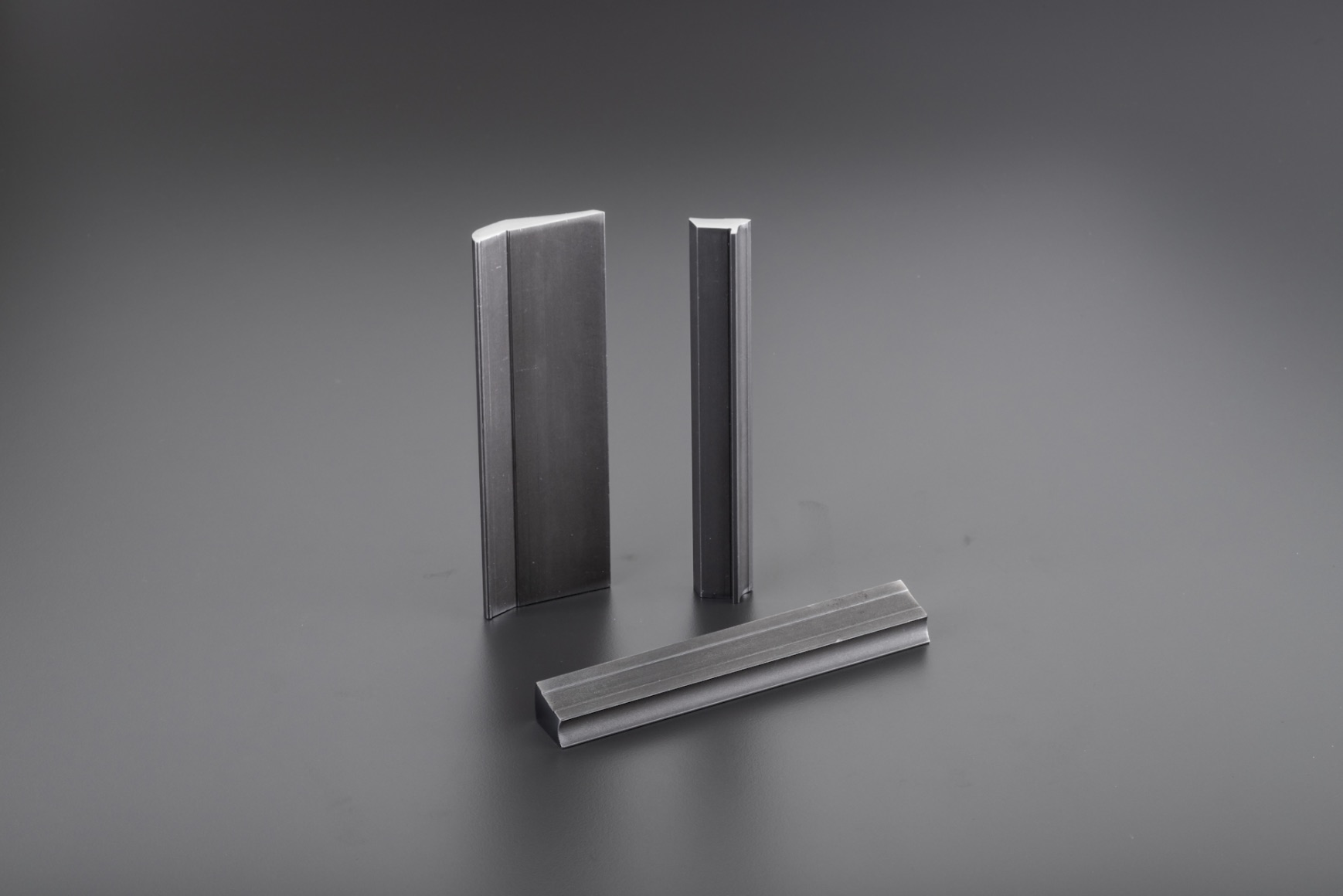

Tooling for Woodworking Machine

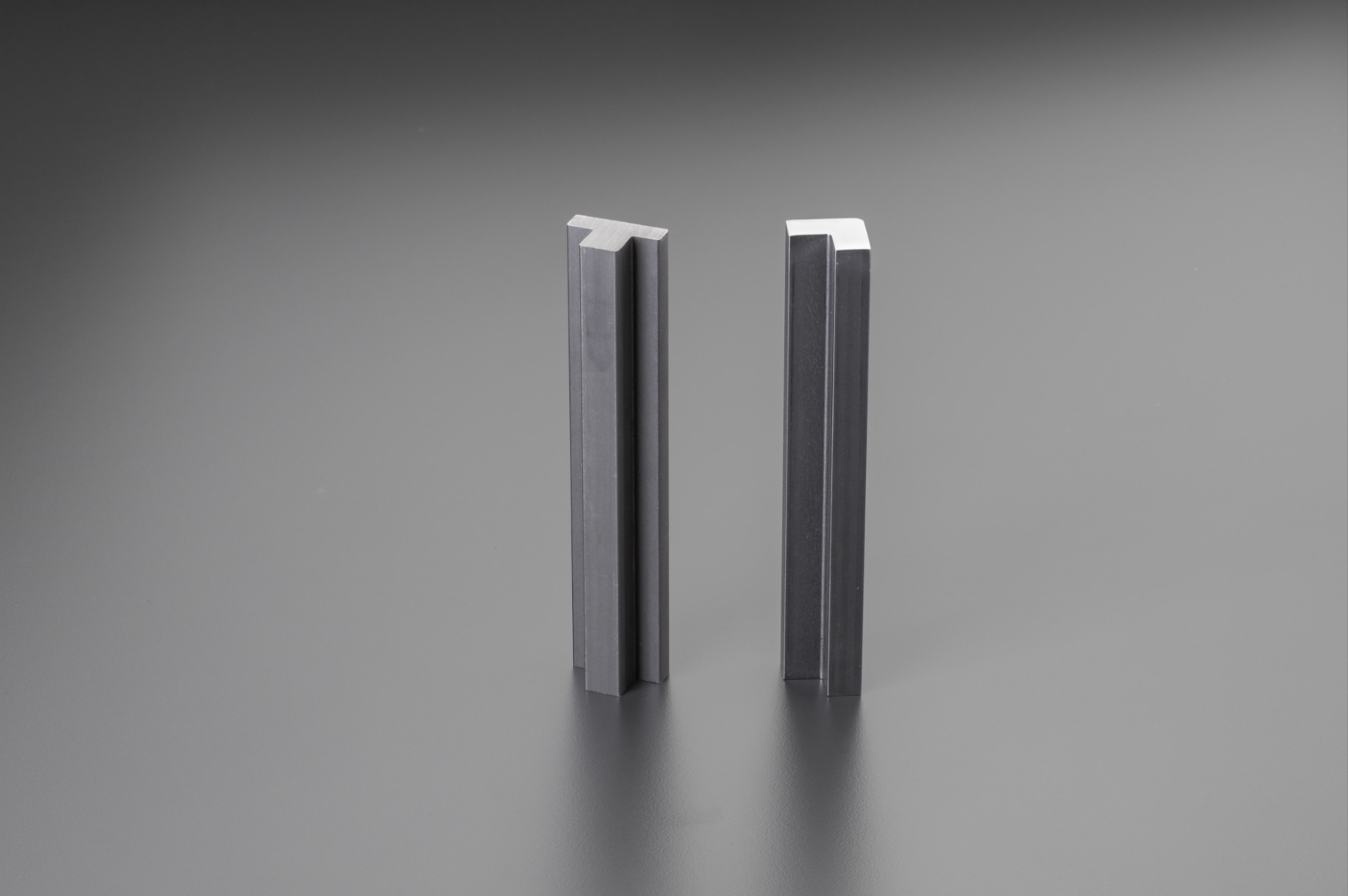

Hydraulic Fittings

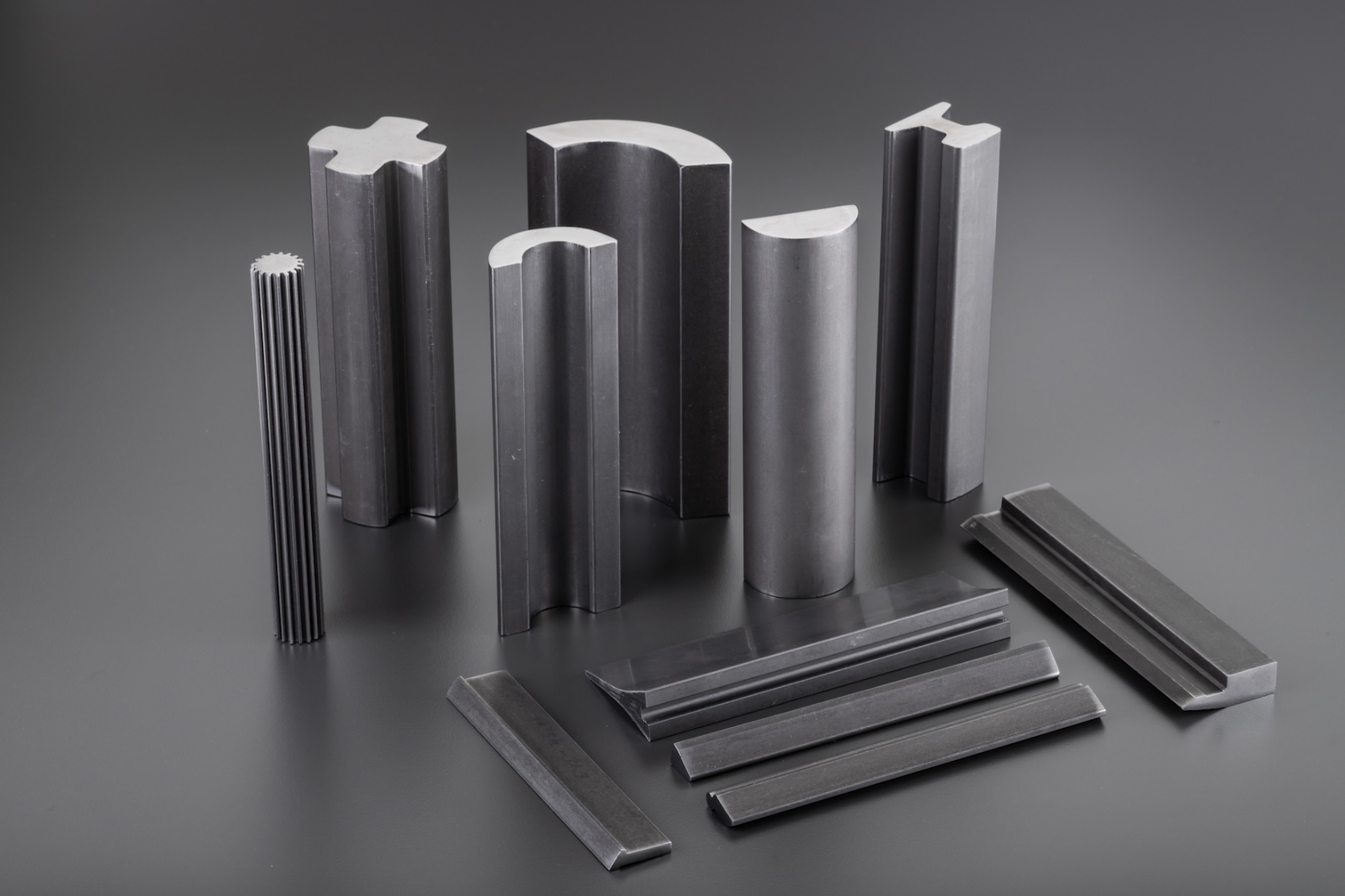

Others
